RGB 3W High Power Star LED
SKU 311455
MPN: 311455
Availability:
Out of stock
Sold out
Original price
£1.28
-
Original price
£1.28
Original price
£1.28
£1.28
-
£1.28
Current price
£1.28

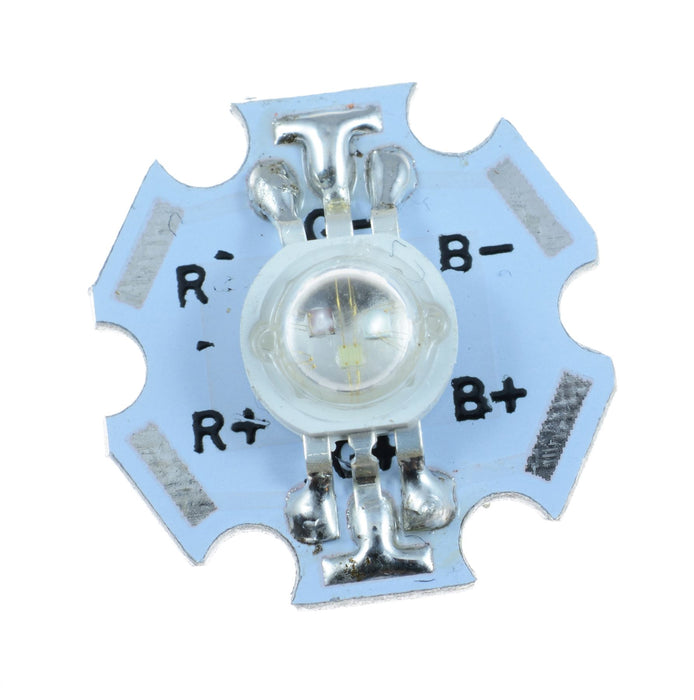

High power 3W LEDs with red, green and blue outputs mounted on a PCB substrate. The LEDs feature a high quality chip which provides a high luminosity whilst remaining energy efficient, this makes them suitable for applications including signal lighting, automotive, TV backlighting, traffic signals etc.
Colour: RGB Long lifespan Excellent UV resistance Luminous flux: Red 30lm, Blue 15lm, Green 80lm Forward current: 350mA typical Forward voltage (typical): Red 2.8V, Blue 3.3V, Green 3.3V
Specification
| back order lead time | 45 Days |
| colour | RGB |
| forward current | 750mA |
| forward voltage | Red 2.8V, Green 3.8V, Blue 3.8V |
| lens colour | Clear |
| lens shape | Dome |
| luminous flux | Red 30lm Blue 15lm Green 80lm |
| luminous intensity | Red 30lm, Green 80lm, Blue 15lm |
| mounting style | Surface Mount |
| number of pins | 6 |
| operating temperature | -40°C to +80°C |
| package | PCB Substrate |
| packaging | Bulk |
| power dissipation | 3W |
| power rating | 3W |
| viewing angle | 140° |
| wavelength | Red 625nm, Green 525nm, Blue 465nm |
