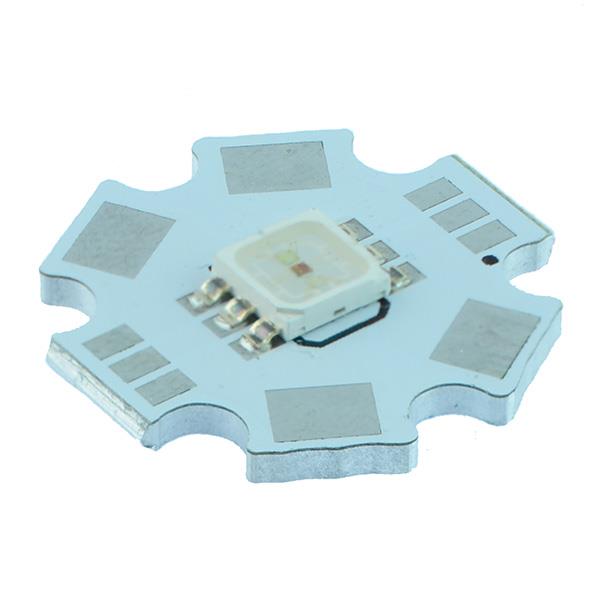

RGB 3W Star High Power SMD LED
SKU 480383
MPN: 480383
Availability:
463 in stock
Original price
£2.86
-
Original price
£2.86
Original price
£2.86
£2.86
£2.86
-
£2.86
Current price
£2.86
RGB high power 3W LED featuring red, green and blue dies providing high luminosity and excellent energy efficiency. The LED is mounted on a heatsink and is suitable for applications including automotive lighting, TVs, monitor backlights, traffic signals and many more.
Long lifespan Superior UV resistance Power dissipation: 2500mW Continuous forward current: 300mA Forward voltage: Red 2.0-2.4V, Green 3.0-3.2V, Blue 3.0-3.2V
Specification
| Back Order Lead Time | 45 Days |
| Colour | RGB |
| Forward Current | 300mA |
| Forward Voltage | Red 2-2.4V, Green 3-3.2V, Blue 3-3.2V |
| Luminous Flux | Red 50lm, Green 80lm, Blue 20lm |
| Mounting Style | Surface Mount |
| Number of Pins | 6 |
| Operating Temperature | -40°C to +80°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 2.5W |
| Power Rating | 3W |
| Viewing Angle | 120° |
| Wavelength | Red 625nm, Green 525nm, Blue 470nm |
