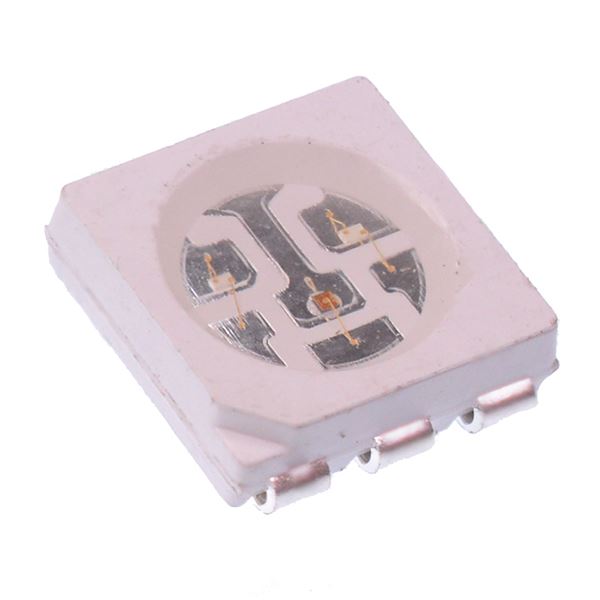

RGB 5050 PLCC-6 Water Clear SMD LED 120°

SKU 484862


Back Order Availability: 40 Days

1623 in stock, ready to be shipped
Original price £0.17 - Original price £0.17
Original price
£0.17 Inc VAT
£0.17 - £0.17
Current price £0.17 Inc VAT
RGB surface mount LED housed in a 5050 package featuring a high luminous intensity suitable for a wide range of applications including automotive, backlighting and indicator uses.

  • 5050 PLCC-6 package
  • Luminous intensity: red 600mcd, green 1250mcd, blue 350mcd
  • 120° viewing angle
  • Wavelength: red 624nm, green 525nm, blue 470nm
  • Forward voltage: red 2.1V, green 3.2V, blue 3.2V
  • Forward current: 25mA
  • Water clear lens
  • UV resistant
  • Supplied on tape packaging
  • Dimensions: 5.0 x 5.0 x 1.5mm
  • Specification
    Back order lead time 40 Days
    Colour RGB
    Forward current 25mA
    Forward voltage Red 2.1V, Green 3.2V, Blue 3.2V
    Lens colour Clear
    Luminous intensity Red 600mcd, Green 1250mcd, Blue 350mcd
    Mounting style PCB Mount
    Mpn R5050RGBC-001
    Number of pins 6
    Operating temperature -40°C to +85°C
    Package 5050
    Packaging Cut Tape
    Power dissipation Red 60mW, Green 90mW, Blue 90mW
    Viewing angle 120°
    Wavelength Red 624nm, Green 525nm, Blue 470nm
