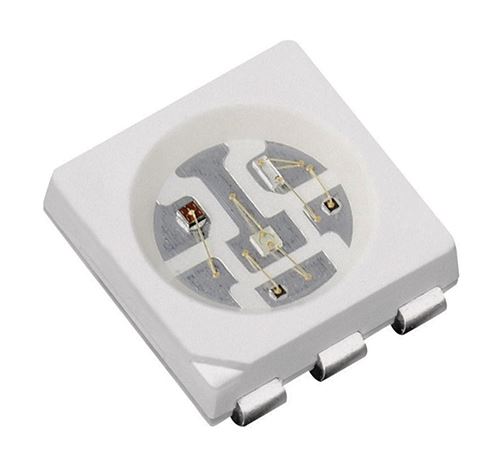

RGB 5050 SMD PLCC-6 LED Water Clear
by Toyo LED
SKU 311221
MPN: TY-5050RGB3
Availability:
1119 in stock
Original price
£0.26
-
Original price
£0.26
Original price
£0.26
£0.26
£0.26
-
£0.26
Current price
£0.26
Surface mount LEDs in a 5050 package with a high luminous intensity suitable for a wide range of applications including backlighting and indicator uses.
5050 PLCC-6 package 120° viewing angle UV resistant Dimensions: 5.0 x 5.0 x 1.6mm Supplied on tape packaging
Specification
| Back Order Lead Time | 45 Days |
| Colour | RGB |
| Forward Current | Red 30mA, Green 25mA, Blue 30mA |
| Forward Voltage | Red 2.2V, Green 3.2V, Blue 3.2V |
| Height | 1.6mm |
| Length | 5.0mm |
| Lens Colour | Clear |
| Luminous Intensity | Red 700mcd, Green 1200mcd, Blue 400mcd |
| MOQ | 5 |
| Mounting Style | Surface Mount |
| Number of Pins | 6 |
| Operating Temperature | -40°C to 85°C |
| Package | 5050 |
| Packaging | Cut-Tape |
| Power Dissipation | Red=60mW Green=95mW Blue=110mW |
| Viewing Angle | 120° |
| Wavelength | Red 622nm, Green 522nm, Blue 465nm |
| Width | 5.0mm |
