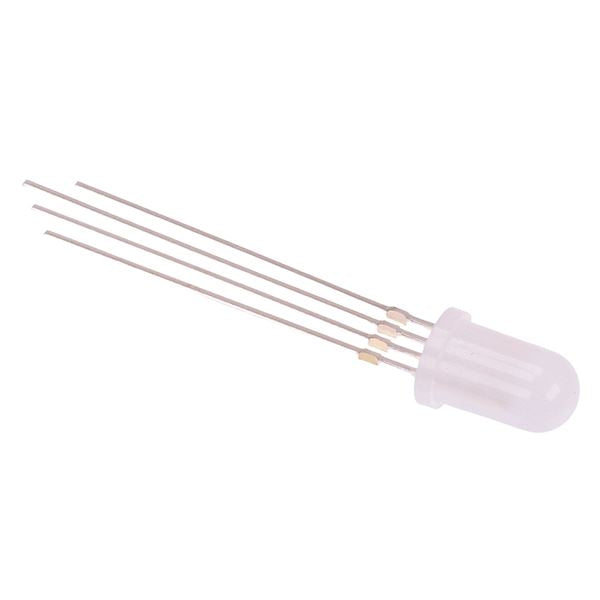

RGB 5mm Diffused LED 160° Common Cathode

SKU 484905

MPN: 509RGBM2E-002

4713 in stock
Original price £0.36 - Original price £0.36
Original price
£0.36 Inc VAT
£0.36 - £0.36
Current price £0.36 Inc VAT
RGB 5mm LED featuring a white diffused package with 4 leads connected in common cathode. The LED is suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: red 500mcd, green 1500mcd, blue 500mcd
  • Wavelength: red 624nm, green 525nm, blue 470nm
  • Viewing angle: 160°
  • Forward voltage: red 2.0V, green 3.2V, blue 3.2V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • 2.54mm lead pitch
  • White diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 40 Days
    Colour RGB
    Diameter 5mm
    Forward current 25mA
    Forward voltage Red 2.0V, Green 3.2V, Blue 3.2V
    Lens colour White
    Lens shape Round
    Luminous intensity Red 500mcd, Green 1500mcd, Blue 500mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 4
    Operating temperature -40°C to +85°C
    Package 5mm
    Packaging Bulk
    Power dissipation Red 60mW, Green 90mW, Blue 90mW
    Viewing angle 160°
    Wavelength Red 624nm, Green 525nm, Blue 470nm
