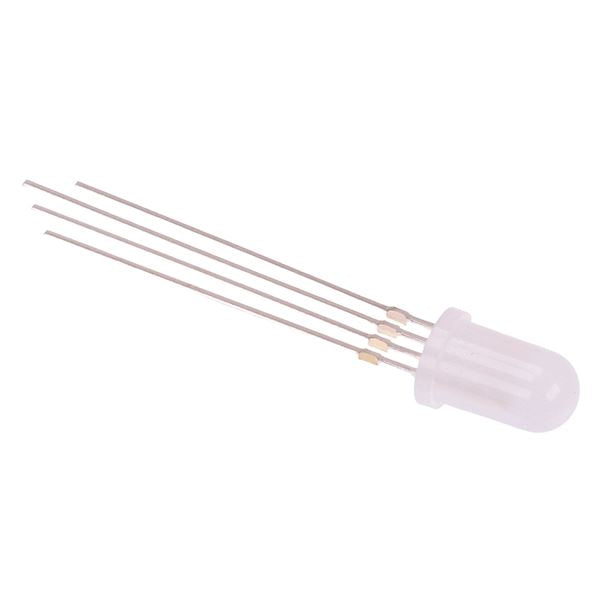

RGB 5mm Diffused LED 60° Common Anode

SKU 484906

MPN: 509RGBM2E-004

3527 in stock
Original price £0.36 - Original price £0.36
Original price
£0.36 Inc VAT
£0.36 - £0.36
Current price £0.36 Inc VAT

RGB 5mm LED featuring a white diffused package with 4 leads connected in common anode. The LED is suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: red 600mcd, green 1000mcd, blue 500mcd
  • Wavelength: red 632nm, green 520nm, blue 468nm
  • Viewing angle: 60°
  • Forward voltage: red 2.0V, green 3.2V, blue 3.2V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • 2.54mm lead pitch
  • White diffused lens
  • Excellent weather resistance
  • Long lifespan
Back order lead time 40 Days
Colour RGB
Diameter 5mm
Forward current 25mA
Forward voltage Red 2.0V, Green 3.2V, Blue 3.2V
Lens colour White
Lens shape Round
Luminous intensity Red 600mcd, Green 1000mcd, Blue 500mcd
Mode Constant
Moq 5
Mounting style Through Hole
Number of pins 4
Operating temperature -40°C to +85°C
Package 5mm
Packaging Bulk
Power dissipation Red 65mW, Green 95mW, Blue 95mW
Viewing angle 60°
Wavelength Red 632nm, Green 520nm, Blue 468nm
