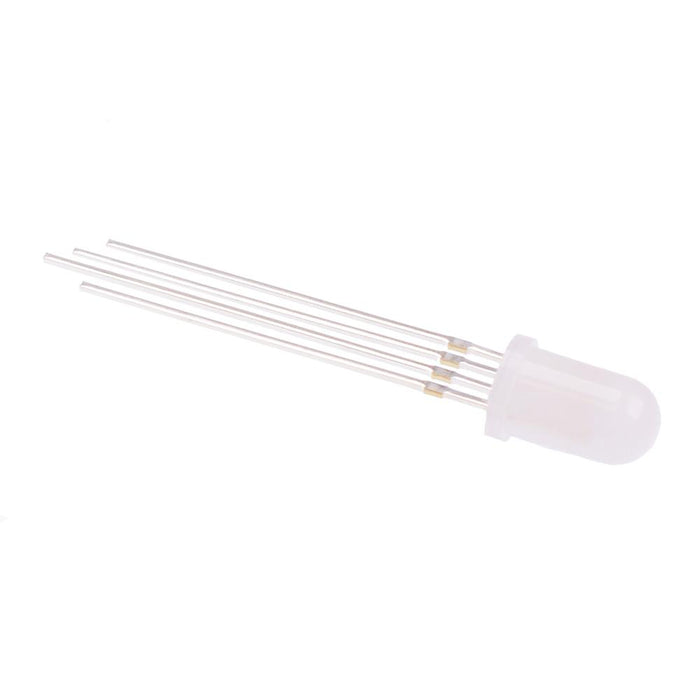

RGB 5mm White Diffused LED Common Anode 60°

SKU 490455

MPN: 509RGBM2E-004

Availability:
5000 in stock
Original price £0.32 - Original price £0.32
Original price
£0.32
£0.32 - £0.32
Current price £0.32
RGB 5mm LEDs featuring a white diffused lens and uniform light output. The LEDs feature a long lifespan making them suitable for applications including indicators, backlighting, telecommunications and general illumination.

  • Luminous intensity: red 450mcd, green 1500mcd, blue 200mcd
  • Wavelength: red 624nm, green 525nm, blue 470nm
  • Viewing angle: 60°
  • Forward voltage: red 2.0V, green, 3.2V, blue 3.2V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • Common anode
  • 1.27mm lead pitch
  • White diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back Order Lead Time 40 Days
    Colour RGB
    Diameter 5mm
    Forward Current 25mA
    Forward Voltage Red 2.0V, Green 3.2V, Blue 3.2V
    Lens Colour White
    Lens Shape Round
    Luminous Intensity Red 450mcd, Green 1500mcd, Blue 200mcd
    Mode Constant
    MOQ 1
    Mounting Style Through Hole
    Number of Pins 4
    Operating Temperature -40°C to 80°C
    Package 5mm
    Packaging Bulk
    Power Dissipation Red 60mW, Green 90mW, Blue 90mW
    Viewing Angle 60°
    Wavelength Red 624nm, Green 525nm, Blue 470nm
