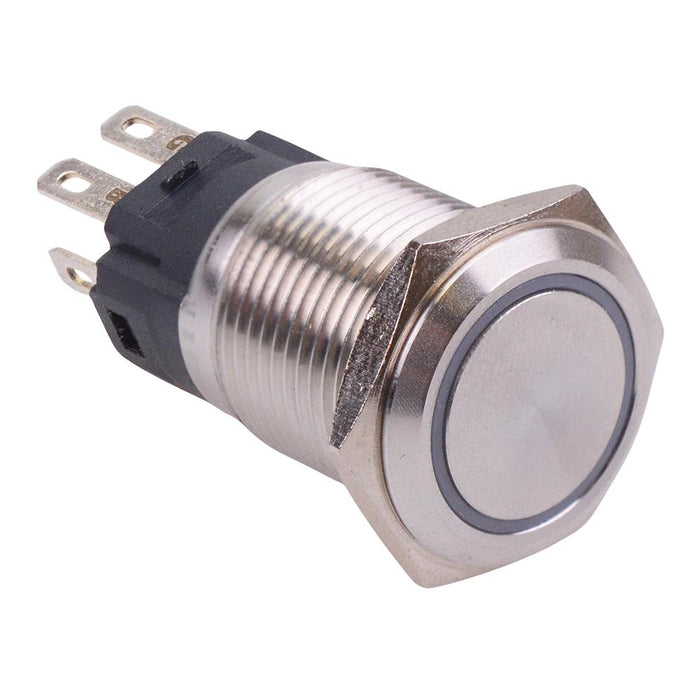

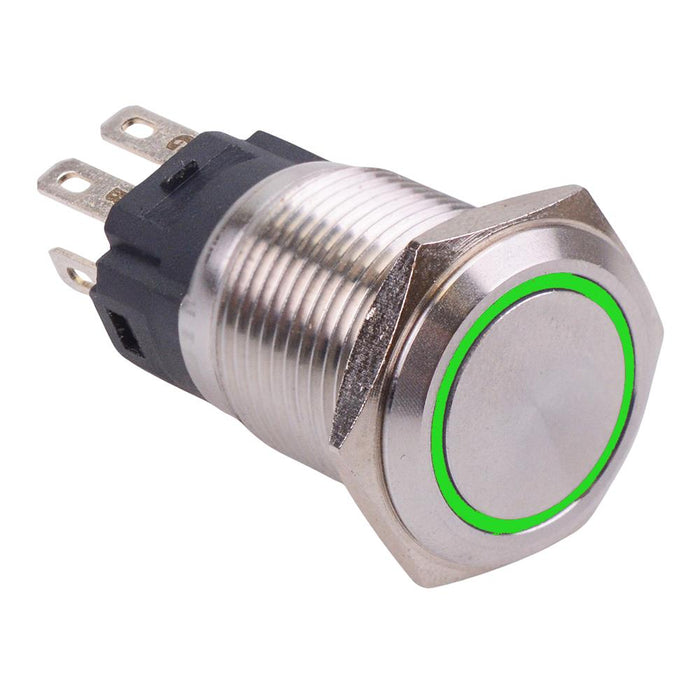

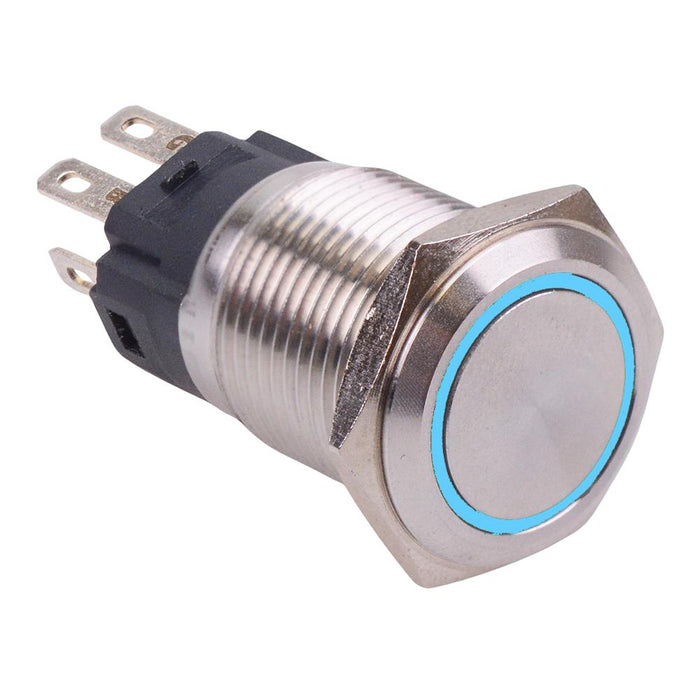

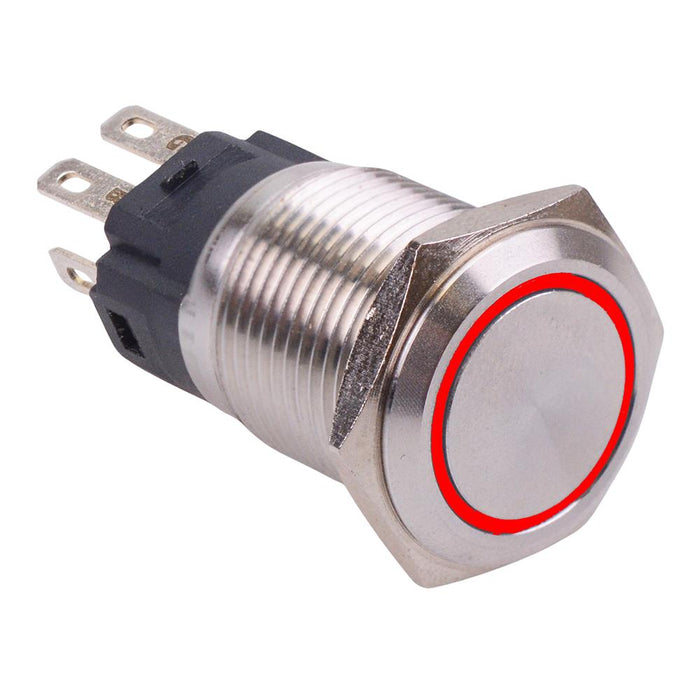

RGB Latching 16mm Vandal Resistant Push Button Switch 12V SPDT
by Langir
SKU 482547
MPN: L16T-FZ1SR3A12V
Availability:
33 in stock
Original price
£10.52
-
Original price
£10.52
Original price
£10.52
£10.52
£10.52
-
£10.52
Current price
£10.52
Latching stainless steel vandal resistant push button switch featuring a RGB LED and IP65 protecton rating. The switch fits 16mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.

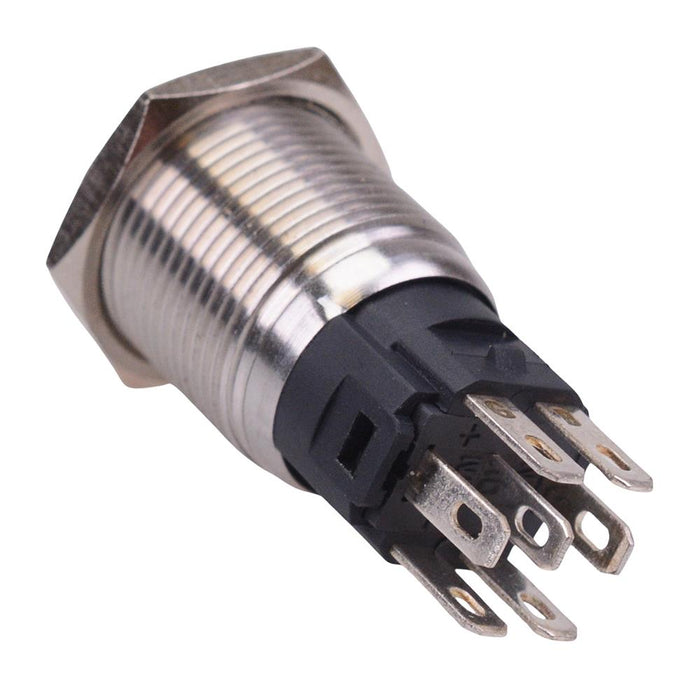

Latching switch action NO / NC contacts RGB 12V LED Panel cut-out: 16mm Maximum panel thickness: 10mm Rating: 3A 250VAC Protection rating: IP65 2.8mm quick connect terminals Dimensions: 36 x 18mm (Length x Diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | RGB |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | RGB |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 1.0-10mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
