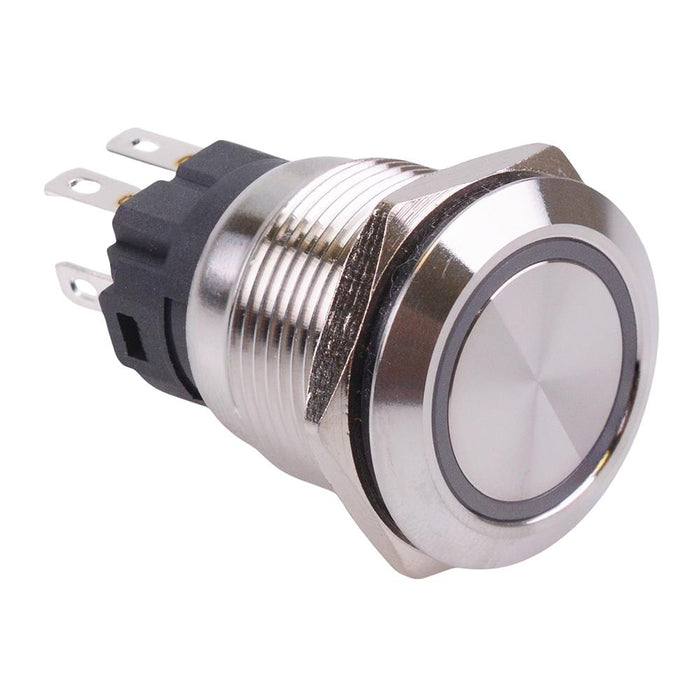

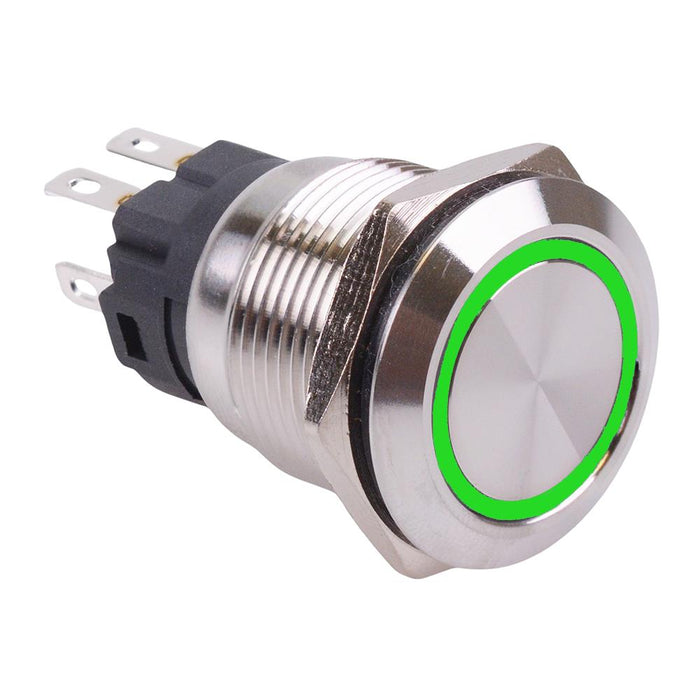

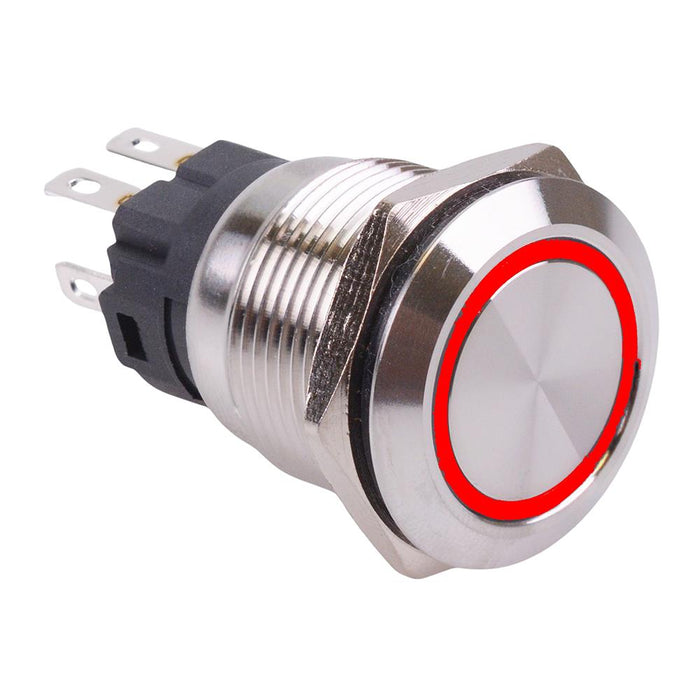

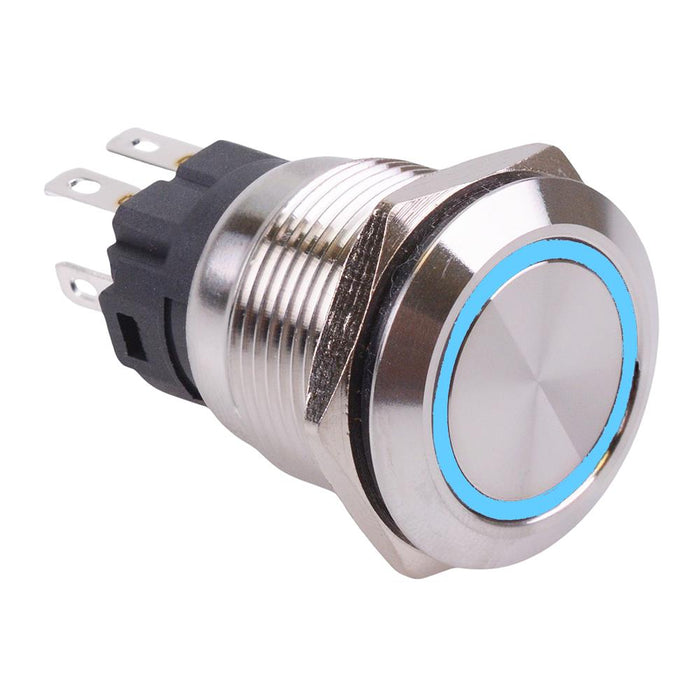

RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
by Langir
SKU 482548
MPN: L19T-FM1SR3A12V
Availability:
34 in stock
Original price
£11.73
-
Original price
£11.73
Original price
£11.73
£11.73
-
£11.73
Current price
£11.73
Momentary stainless steel vandal resistant push button switch featuring a RGB LED and IP65 protecton rating. The switch fits 19mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.

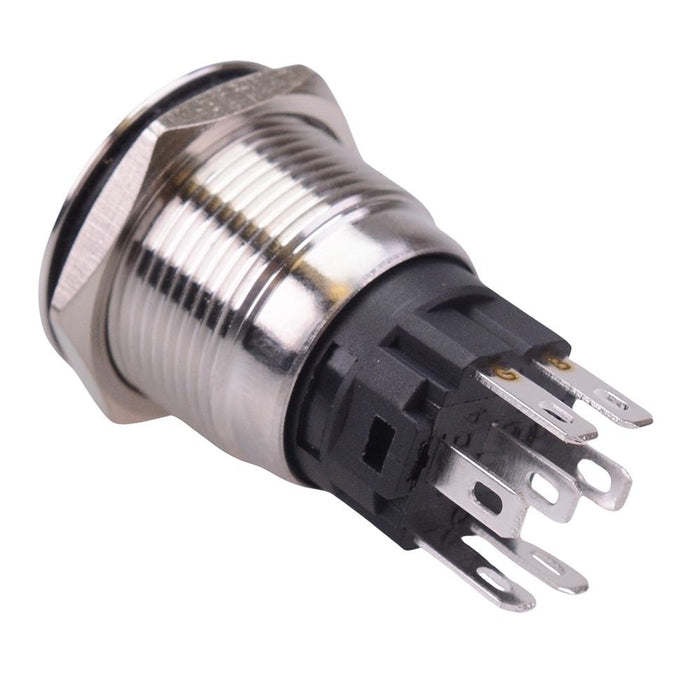

Momentary switch action NO / NC contacts RGB 12V LED Panel cut-out: 19mm Maximum panel thickness: 10mm Rating: 3A 250VAC Protection rating: IP65 2.8mm quick connect terminals Dimensions: 37 x 22mm (length x diameter)
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Colour | RGB |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 100,000 Cycles |
Illuminated | Yes |
Illumination Colour | RGB |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 19mm |
Panel Thickness | 1.0-10mm |
Protection Level | IP65 |
Switch Operation | On-(On) |
Terminal Type | Quick Connect |
Voltage Rating | 250VAC |
