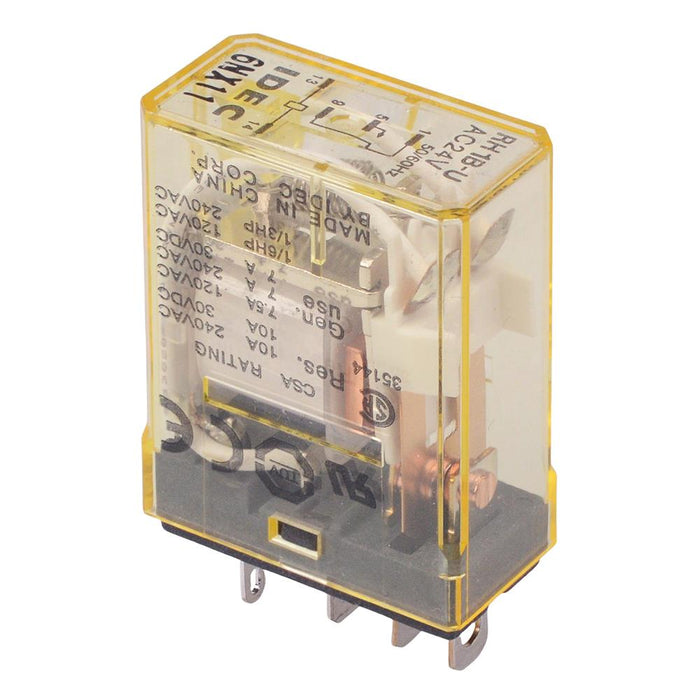

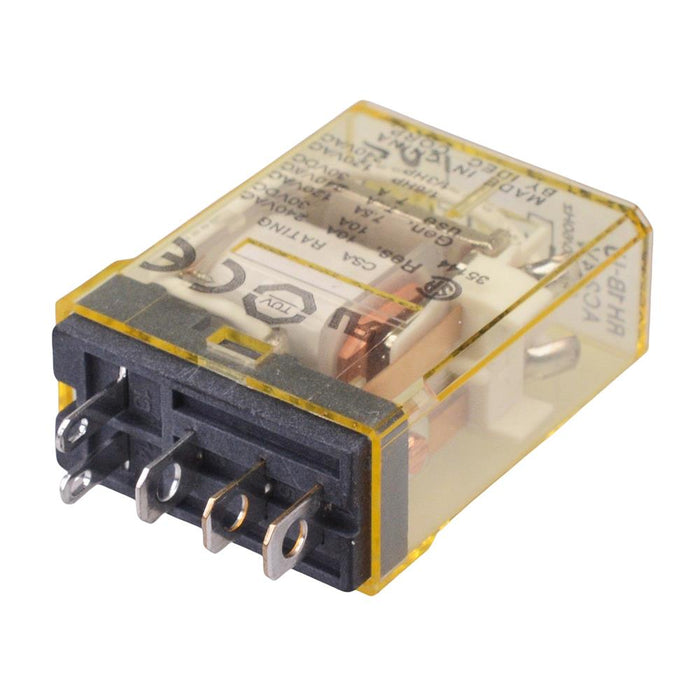

RH1B-UAC24V 24VAC Plug In Compact Power Relay 10A SPDT IDEC
by IDEC
SKU 493251
MPN: RH1B-UAC24V
Availability:
10 in stock
Original price
£8.25
-
Original price
£8.25
Original price
£8.25
£8.25
-
£8.25
Current price
£8.25
The RH1B-UAC24 is a 24VAC compact power relay featuring blade terminals and SPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 24VAC Contact rating: 10A SPDT contacts Without LED indicator 4.7mm quick connect terminals Fits SH1B-05 and SH1B-05C DIN rail sockets Dimensions: 42 x 14 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 83Ω |
| Coil Voltage | 24VAC |
| Contact Arrangement | SPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 26.4VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.1VA |
| Rated Load | 1540VA / 300W |
| Terminal Type | Quick Connect |
