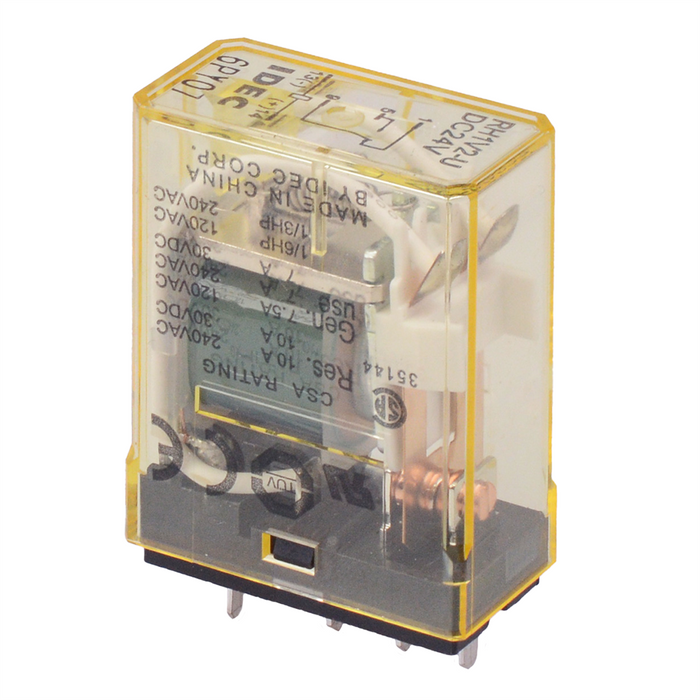

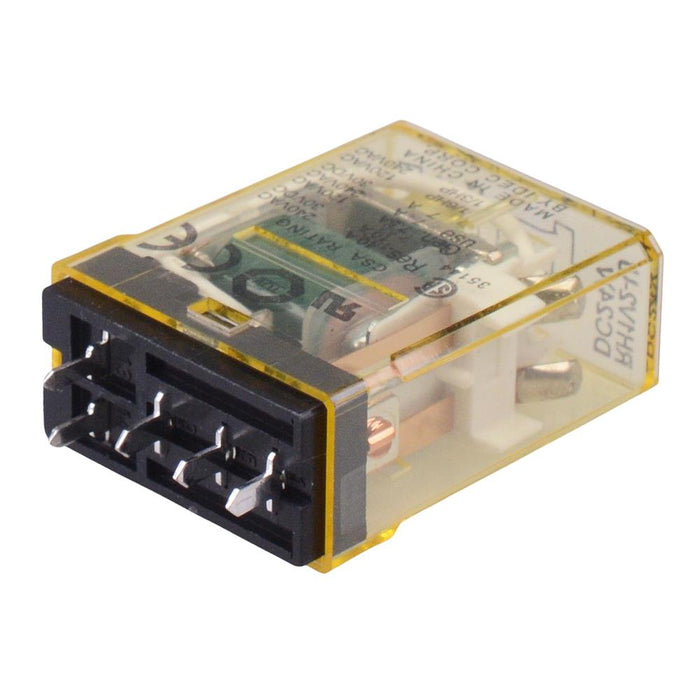

RH1V2-UDC24V 24VDC PCB Compact Power Relay 10A SPDT IDEC
by IDEC
SKU 493256
MPN: RH1V2-UDC24V
Availability:
10 in stock
Original price
£8.05
-
Original price
£8.05
Original price
£8.05
£8.05
-
£8.05
Current price
£8.05
The RH1V2-UDC24 is a 24VDC compact power relay featuring PCB terminals and SPDT contacts. The relay features a 10A contact rating and is suitable for PCB mounting applications.
Coil voltage: 24VDC Contact rating: 10A SPDT contacts Without LED indicator PCB pin terminals Dimensions: 40.2 x 14 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 83Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 5 |
| Power Consumption | 0.8W |
| Rated Load | 1540VA / 300W |
| Terminal Type | Through Hole |
