RH2B-ULAC110-120V 110-120VAC Plug In Compact Power Relay Indicator 10A DPDT IDEC
by IDEC
SKU 493265
MPN: RH2B-ULAC110-120V
Availability:
10 in stock
Original price
£10.35
-
Original price
£10.35
Original price
£10.35
£10.35
-
£10.35
Current price
£10.35

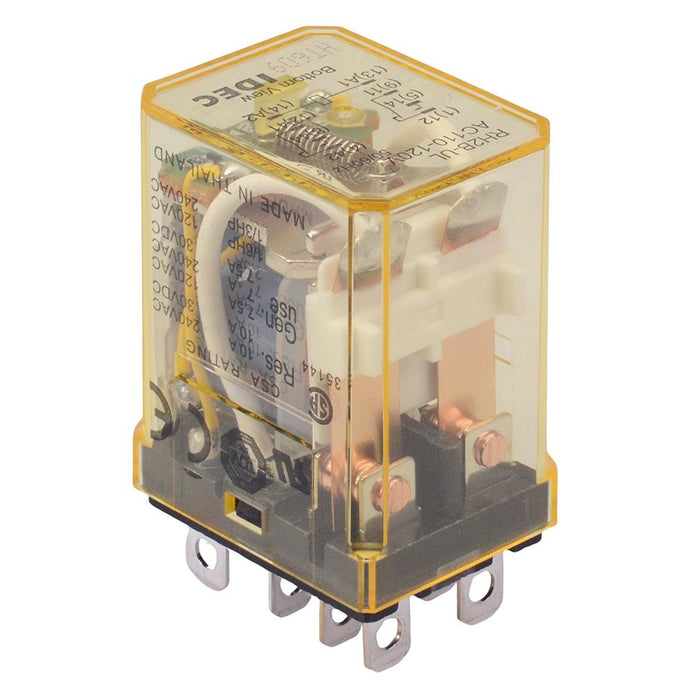

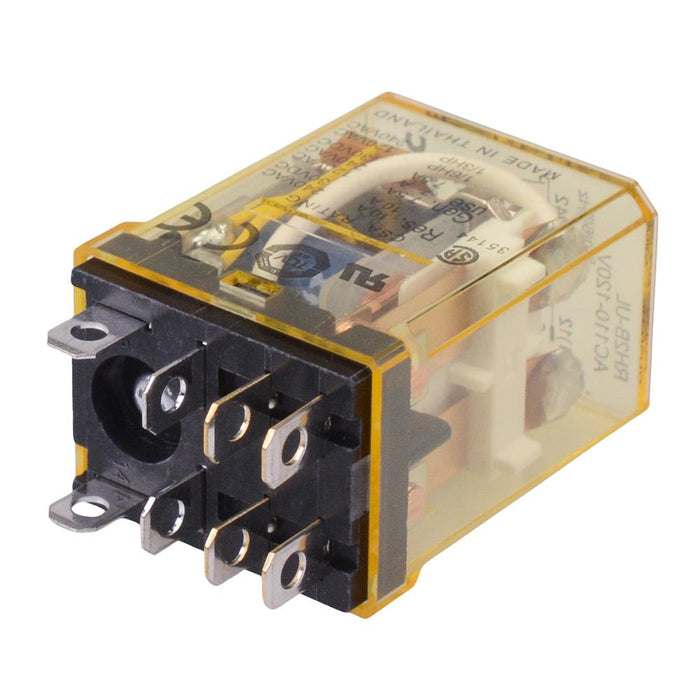

The RH2B-ULAC110-120 is a 110-120VAC compact power relay featuring blade terminals and DPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 110-120VAC Contact rating: 10A DPDT contacts With LED indicator 4.7mm quick connect terminals Fits SH2B-05 and SH2B-05C DIN rail sockets Dimensions: 42 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Voltage | 110-120VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 500,000+ Cycles |
| Maximum Continuous Voltage | 121-132VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 1.4VA |
| Rated Load | 1650VA / 300W |
| Terminal Type | Quick Connect |
