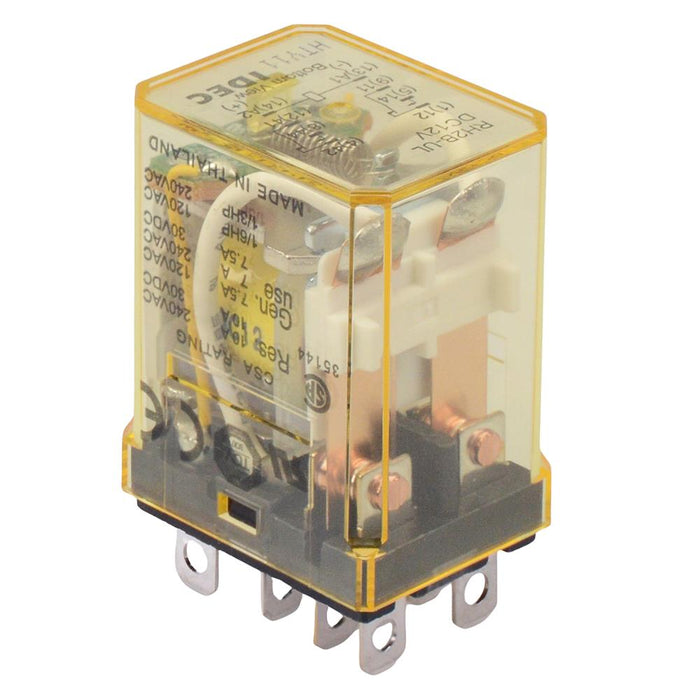

RH2B-ULDC12V 12VDC Plug In Compact Power Relay Indicator 10A DPDT IDEC
by IDEC
SKU 493270
MPN: RH2B-ULDC12V
Availability:
10 in stock
Original price
£10.07
-
Original price
£10.07
Original price
£10.07
£10.07
-
£10.07
Current price
£10.07
The RH2B-ULDC12 is a 12VDC compact power relay featuring blade terminals and DPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
- Coil voltage: 12VDC
- Contact rating: 10A
- DPDT contacts
- With LED indicator
- 4.7mm quick connect terminals
- Fits SH2B-05 and SH2B-05C DIN rail sockets
- Dimensions: 42 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 39.3Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | DPDT |
| Electrical Life | 500,000+ Cycles |
| Maximum Continuous Voltage | 13.2VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.9W |
| Rated Load | 1650VA / 300W |
| Terminal Type | Quick Connect |
