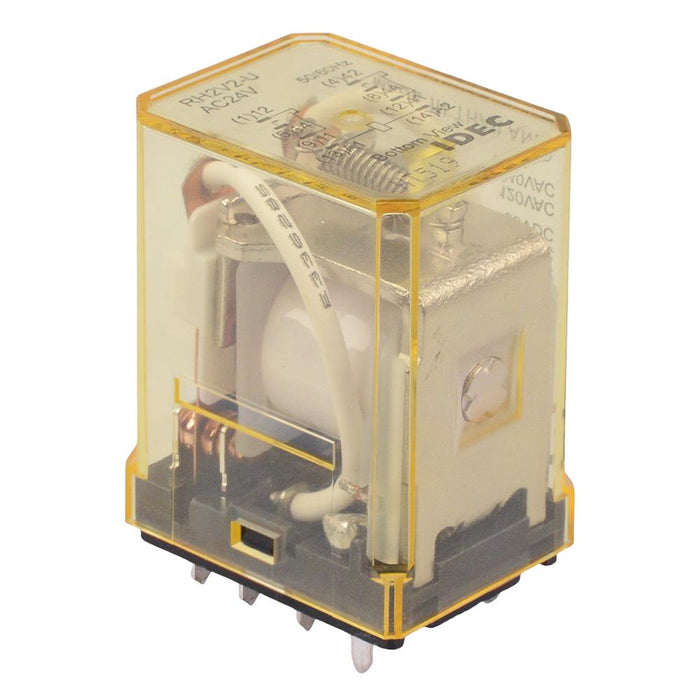

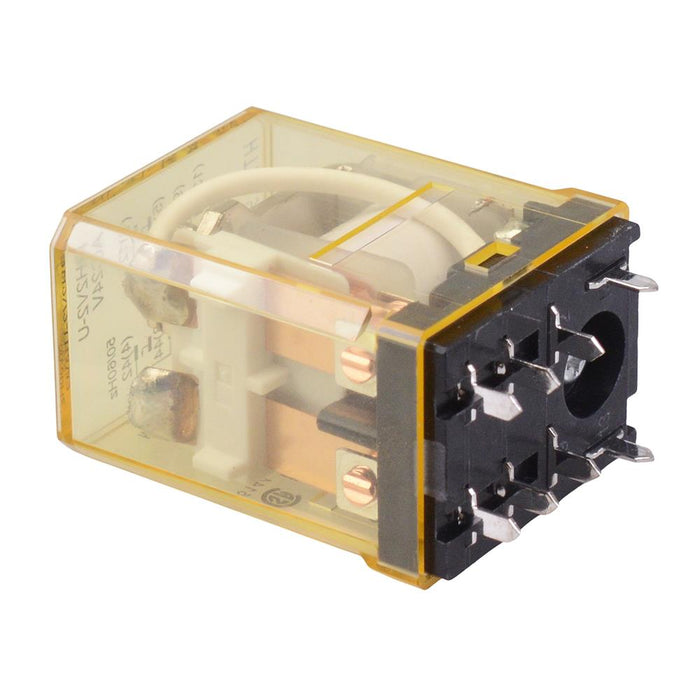

RH2V2-UAC24V 24VAC PCB Compact Power Relay 10A DPDT IDEC
by IDEC
SKU 493274
MPN: RH2V2-UAC24V
Availability:
10 in stock
Original price
£9.54
-
Original price
£9.54
Original price
£9.54
£9.54
£9.54
-
£9.54
Current price
£9.54
The RH2V2-UAC24 is a 24VAC compact power relay featuring PCB terminals and DPDT contacts. The relay features a 10A contact rating and is suitable for PCB mounting applications.
Coil voltage: 24VAC Contact rating: 10A DPDT contacts Without LED indicator PCB pin terminals Dimensions: 40.2 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 153Ω |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 500,000+ Cycles |
| Maximum Continuous Voltage | 26.4VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 1.4VA |
| Rated Load | 1650VA / 300W |
| Terminal Type | Through Hole |
