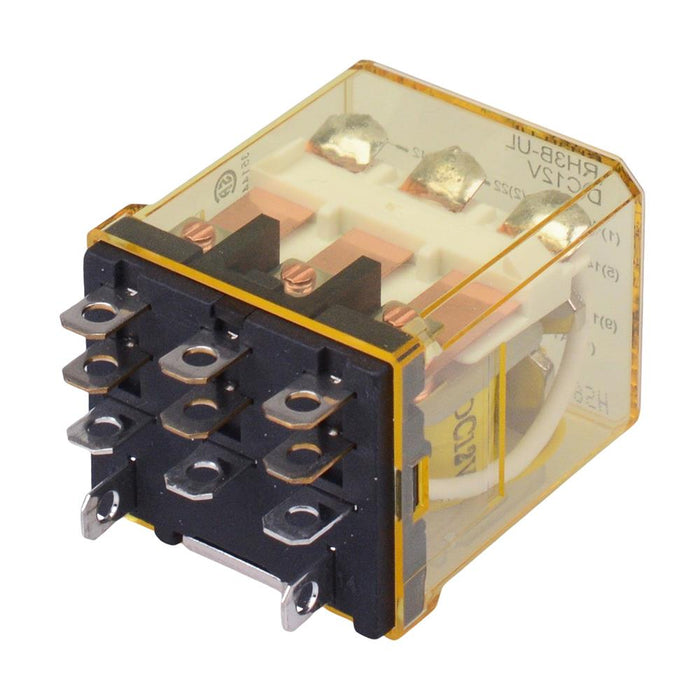

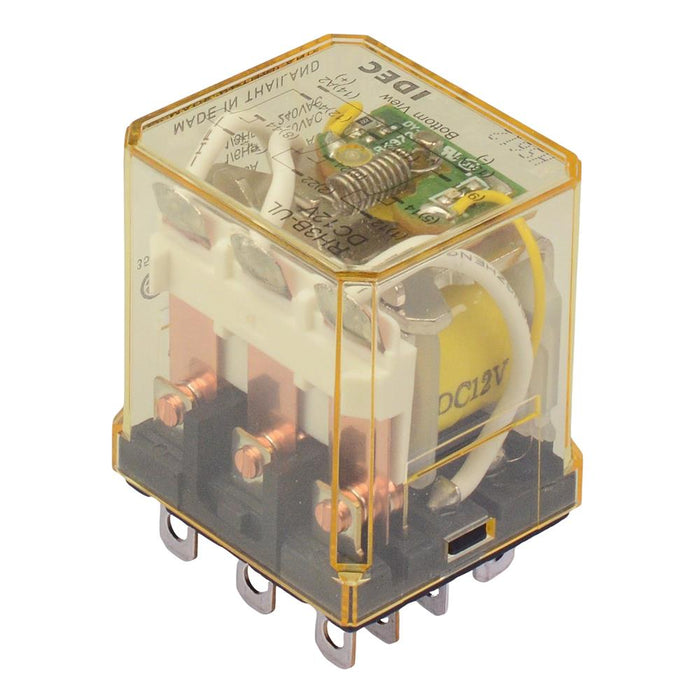

RH3B-ULDC12V 12VDC Plug In Compact Power Relay Indicator 10A 3PDT IDEC
by IDEC
SKU 493280
MPN: RH3B-ULDC12V
Availability:
10 in stock
Original price
£14.39
-
Original price
£14.39
Original price
£14.39
£14.39
-
£14.39
Current price
£14.39
The RH3B-ULDC12 is a 12VDC compact power relay featuring blade terminals and 3PDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 12VDC Contact rating: 10A 3PDT contacts With LED indicator 4.7mm quick connect terminals Fits SH3B-05 and SH3B-05C DIN rail sockets Dimensions: 42 x 31 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 25.3Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | 3PDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 13.2VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 11 |
| Power Consumption | 1.5W |
| Rated Load | 1650VA / 300W |
| Terminal Type | Quick Connect |
