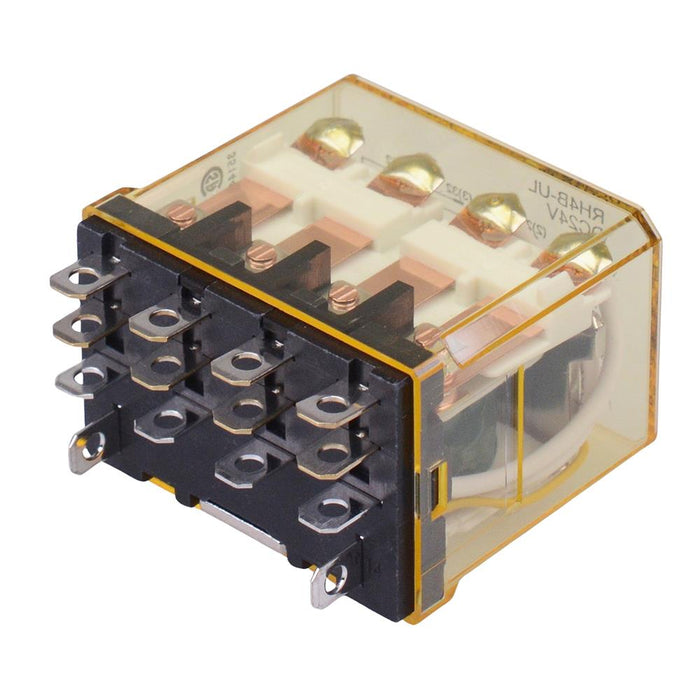

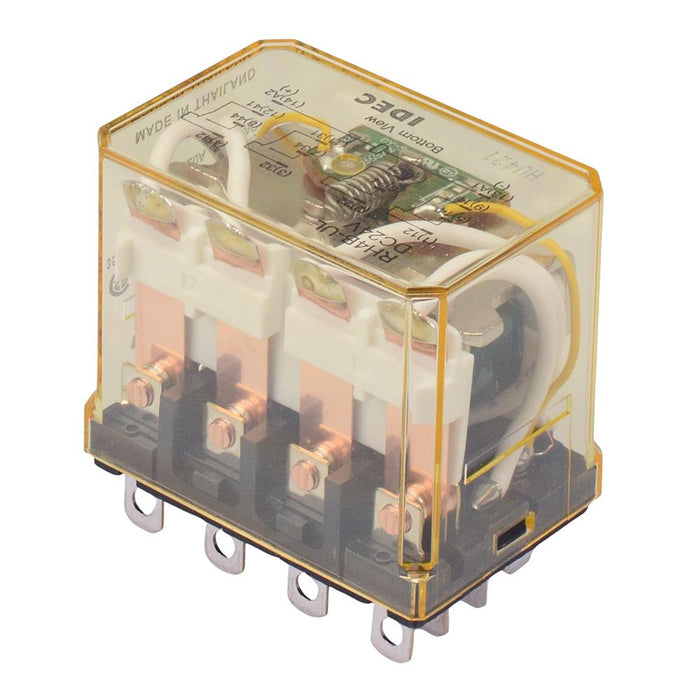

RH4B-ULDC24V 24VDC Plug In Compact Power Relay Indicator 10A 4PDT IDEC
by IDEC
SKU 493289
MPN: RH4B-ULDC24V
Availability:
10 in stock
Original price
£21.60
-
Original price
£21.60
Original price
£21.60
£21.60
-
£21.60
Current price
£21.60
The RH4B-ULDC24 is a 24VDC compact power relay featuring blade terminals and 4PDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 24VDC Contact rating: 10A 4PDT contacts With LED indicator 4.7mm quick connect terminals Fits SH4B-05 and SH4B-05C DIN rail sockets Dimensions: 42 x 41 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 84.5Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | 4PDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 14 |
| Power Consumption | 1.5W |
| Rated Load | 1650VA / 300W |
| Terminal Type | Quick Connect |
