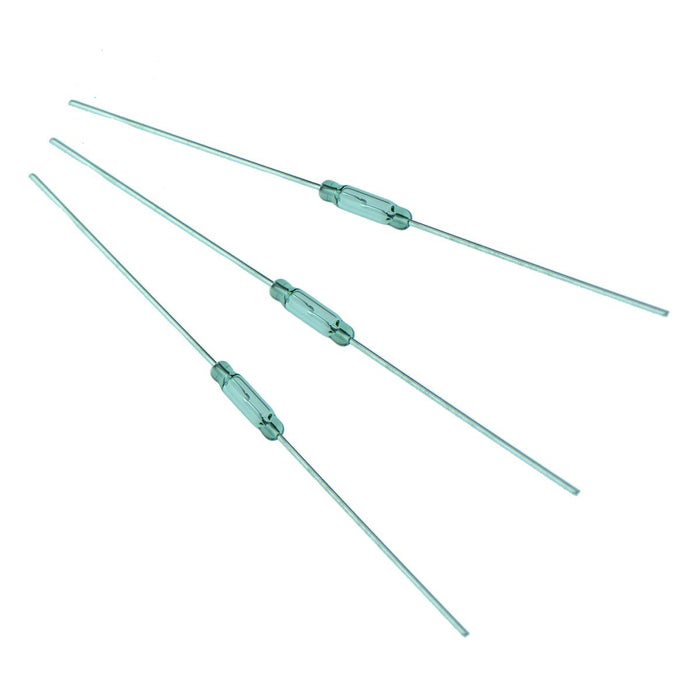

RI-70 SPST-NO Reed Switch High Medium Low Kit
by Comus
SKU 552510
MPN: RI-70K
Availability:
40 in stock
Original price
£2.08
-
Original price
£2.08
Original price
£2.08
Inc VAT
£2.08
-
£2.08
Current price
£2.08
Inc VAT
The RI-70 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts, actuated using an electro-magnet.
Includes qty 1 of each sensitivity high, medium, low Ideal for ATE switching Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Operating range: 5-10, 10-15, 15-20AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.035ms |
| Carry current | 0.5A |
| Contact configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 7mm |
| Material | Rhodium |
| Maximum switching capacity | 10W |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 170VDC, 120VAC |
| Operating temperature | -55°C to +125°C |
| Pull in sensitivity | 5-10, 10-15, 15-20AT |
| Release time | 0.035ms |
