Right Hand Reed Switch Flange Mount SPST-NC 500mA 100V - LMSB 130/30, S1682H

by Comus
SKU 552603

MPN: S1682H

Availability:
7 in stock
Original price £6.06 - Original price £6.06
Original price
£6.06 Inc VAT
£6.06 - £6.06
Current price £6.06 Inc VAT

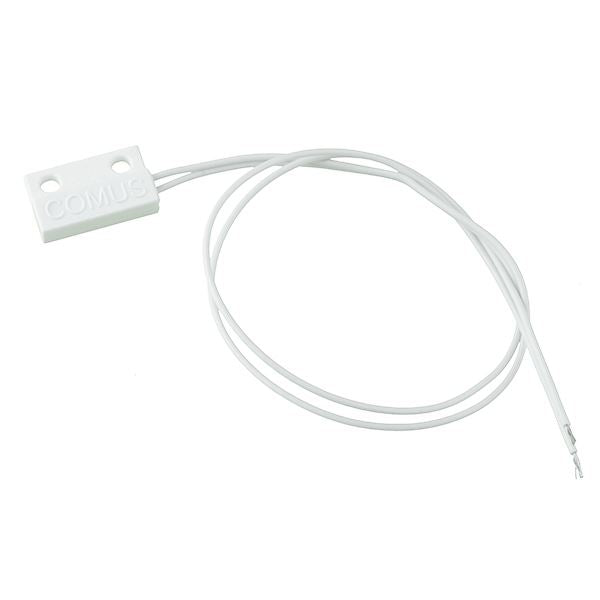

The LMSB 130/30 is a rectangular reed switch featuring normally closed contacts and a ABS case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: LMSM
  • Right handed entry
  • Normally closed contacts
  • Glass filled nylon case
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5VA
  • Switching distance: 5mm Min
  • White 7/0.2mm² PVC cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NC
    Material ABS
    Maximum switching capacity 5VA
    Maximum switching current 0.5A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +70°C
