Right Hand Reed Switch Flange Mount SPST-NC 500mA 100V - MPSB 130/30, S1682B
by Comus
SKU 552601
MPN: S1682B
Availability:
Out of stock
Sold out
Original price
£7.50
-
Original price
£7.50
Original price
£7.50
£7.50
£7.50
-
£7.50
Current price
£7.50

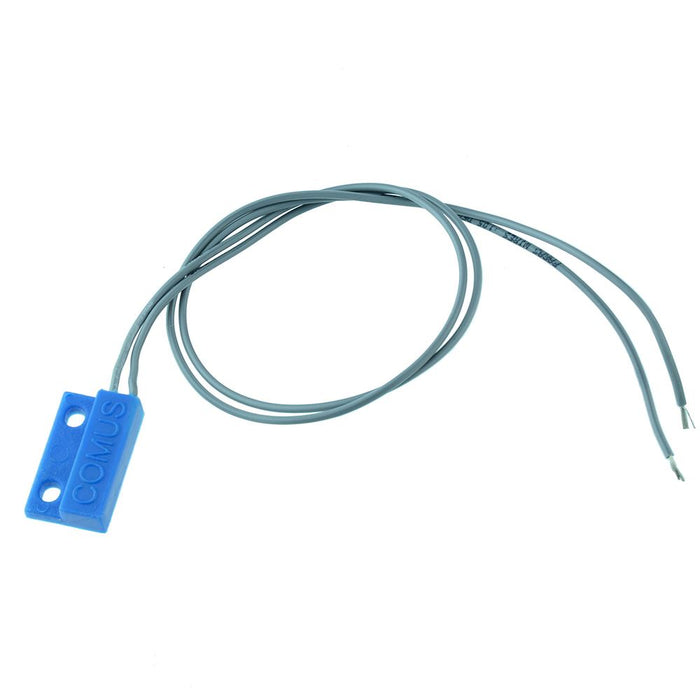

The MPSB 130/30 is a rectangular reed switch featuring normally closed contacts and a glass filled nylon case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.
Suggested magnet: MPSM Right handed entry Normally closed contacts Glass filled nylon case Maximum switching voltage: 100VAC Maximum switching current: 0.5A Maximum switching capacity: 5W/VA Switching distance: 8mm Min 2 x Round 0.25mm² irradiated insulated grey cable
Specification
| Back Order Lead Time | 7 |
| Carry Current | 1A |
| Contact Configuration | SPST-NC |
| Material | Glass Filled Nylon |
| Maximum Switching Capacity | 5W/VA |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 100VAC |
| MOQ | 1 |
| Operating Temperature | -40°C to +105°C |
