Right Hand Reed Switch Flange Mount SPST-NO 500mA 240V - LMSA 240/30, S1682G

by Comus
SKU 552602

MPN: S1682G

Availability:
Only 1 left!
Original price £2.69 - Original price £2.69
Original price
£2.69 Inc VAT
£2.69 - £2.69
Current price £2.69 Inc VAT

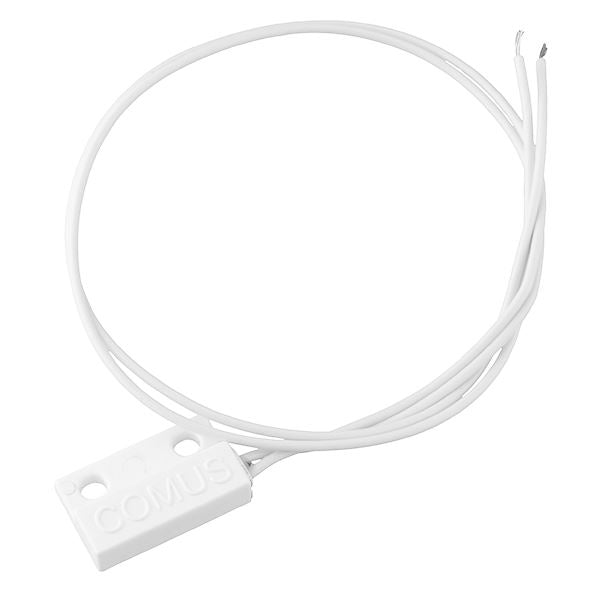

The LMSA 240/30 is a rectangular reed switch featuring normally open contacts and a ABS case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: LMSM
  • Right handed entry
  • Normally open contacts
  • Glass filled nylon case
  • Maximum switching voltage: 240VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10VA
  • Switching distance: 5mm Min
  • White 7/0.2mm² PVC cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NO
    Material ABS
    Maximum switching capacity 10VA
    Maximum switching current 0.5A
    Maximum switching voltage 240VAC
    Operating temperature -20°C to +70°C
