Right Hand Reed Switch Flange Mount SPST-NO 500mA 400V - MMPSA 240/30, S1692

by Comus
SKU 552608

MPN: S1692

Availability:
18 in stock
Original price £4.39 - Original price £4.39
Original price
£4.39 Inc VAT
£4.39 - £4.39
Current price £4.39 Inc VAT

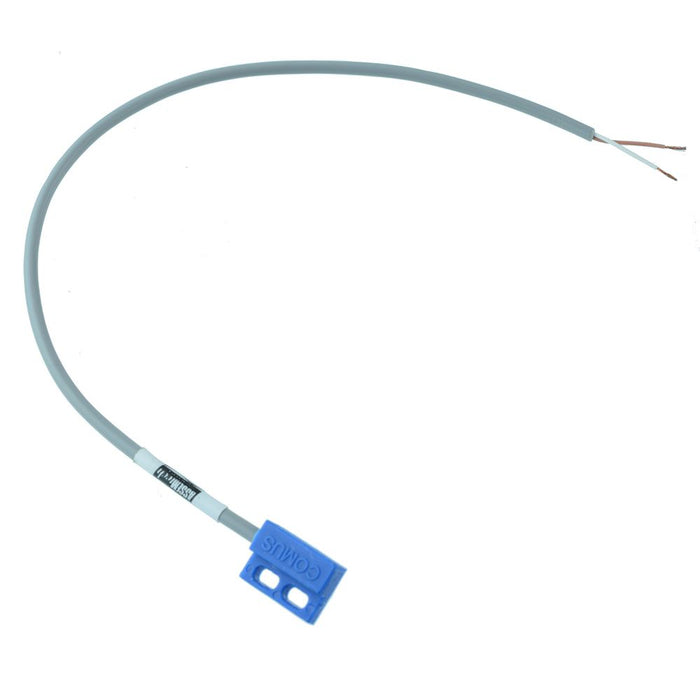

The MMPSA 240/30 is a rectangular reed switch featuring normally open contacts and a blue nylon 66 case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: MMPSM
  • Right handed entry
  • Normally open contacts
  • Blue nylon 66 case
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 10mm Min
  • 2 x Round 0.14mm² PVC covered Grey and insulated Brown / White cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NO
    Material Nylon 66
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -20°C to +85°C
