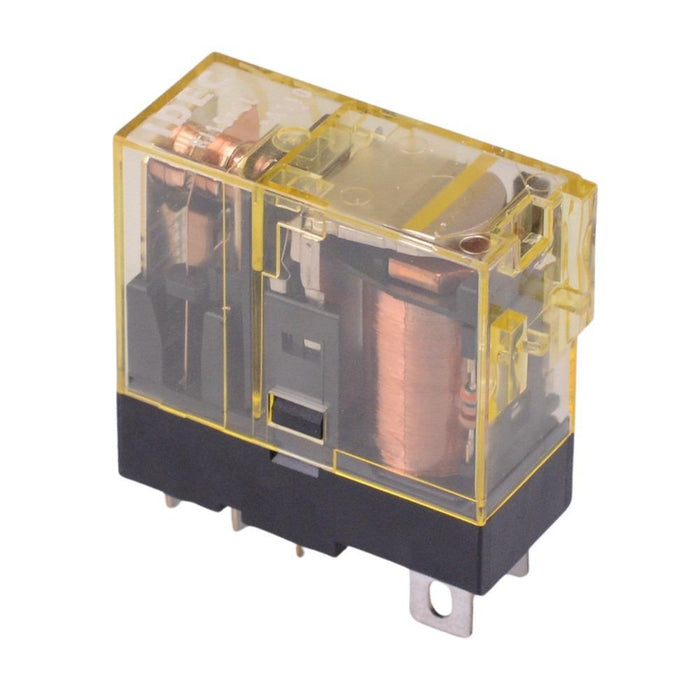

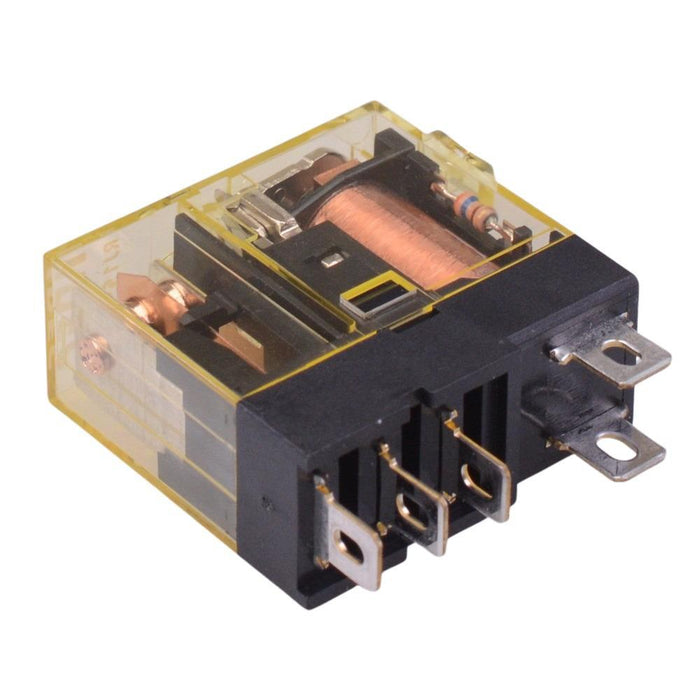

RJ1S-CL-A110 110VAC Plug In Slim Power Industrial Relay 12A SPDT IDEC
by IDEC
SKU 490210
MPN: RJ1S-CL-A110
Availability:
10 in stock
Original price
£7.59
-
Original price
£7.59
Original price
£7.59
£7.59
-
£7.59
Current price
£7.59
The RJ1S-CL-A110 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.
Coil voltage: 110VAC Switching current: 12A With LED indicator Long mechanical life Contact rating: 12A 250VAC/DC Contact configuration: SPDT Plug-in terminals Compatible socketa: SJ1S-05B, SJ1S-07L, SJ1S-21L Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
Specification
| Ambient Temperature | -40°C to +70°C |
| Back Order Lead Time | 130 Days |
| Coil Resistance | 5270Ω |
| Coil Voltage | 110VAC |
| Contact Arrangement | SPDT |
| Maximum Continuous Voltage | 154VAC |
| Maximum Switching Current | 12A |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 0.9VA |
| Terminal Type | Plug In |
