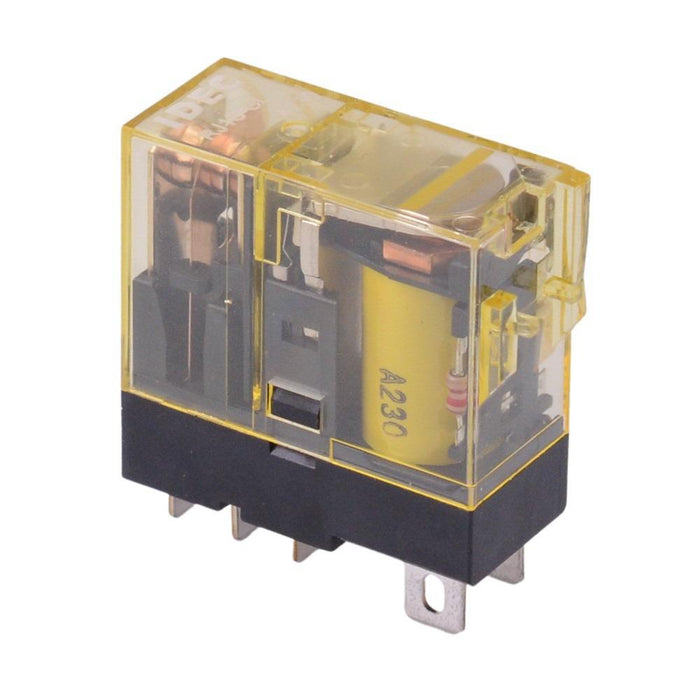

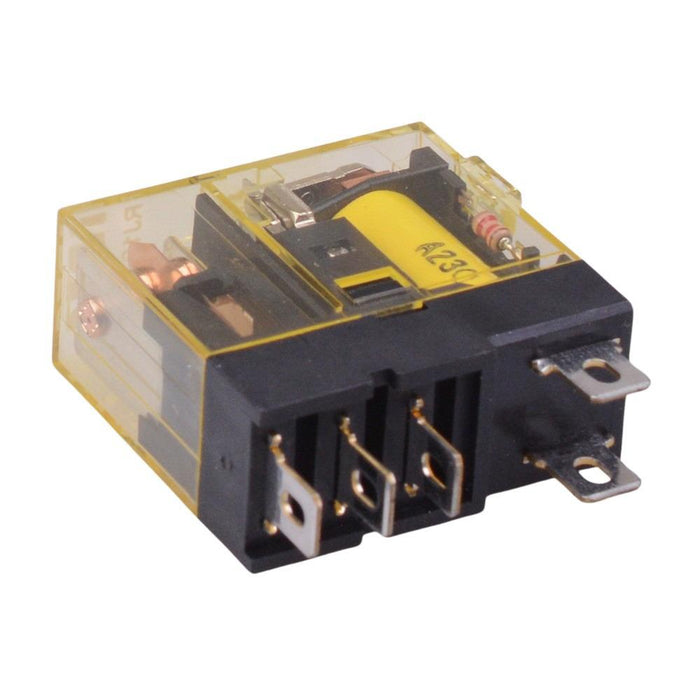

RJ1S-CL-A230 230VAC Plug In Slim Power Industrial Relay 12A SPDT IDEC

by IDEC
SKU 490211

MPN: RJ1S-CL-A230

Availability:
7 in stock
Original price £8.76 - Original price £8.76
Original price
£8.76
£8.76 - £8.76
Current price £8.76
The RJ12-CL-A230 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.

  • Coil voltage: 230VAC
  • Switching current: 12A
  • With LED indicator
  • Long mechanical life
  • Contact rating: 12A 250VAC/DC
  • Contact configuration: SPDT
  • Plug-in terminals
  • Compatible socketa: SJ1S-05B, SJ1S-07L, SJ1S-21L
  • Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
  • Specification
    Ambient Temperature -40°C to +70°C
    Back Order Lead Time 130 Days
    Coil Resistance 24100Ω
    Coil Voltage 230VAC
    Contact Arrangement SPDT
    Maximum Continuous Voltage 322VAC
    Maximum Switching Current 12A
    MOQ 1
    Mounting Type Plug In
    Number of Contacts 5
    Power Consumption 0.9VA
    Terminal Type Plug In
