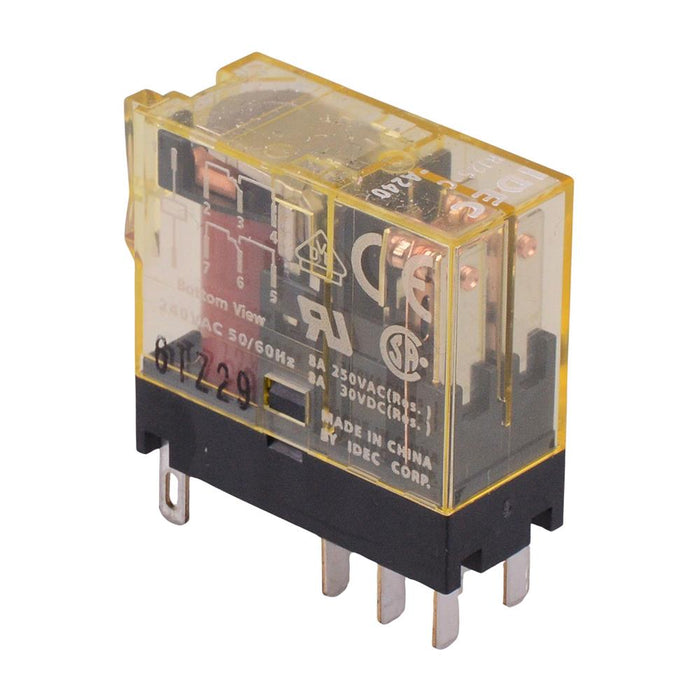

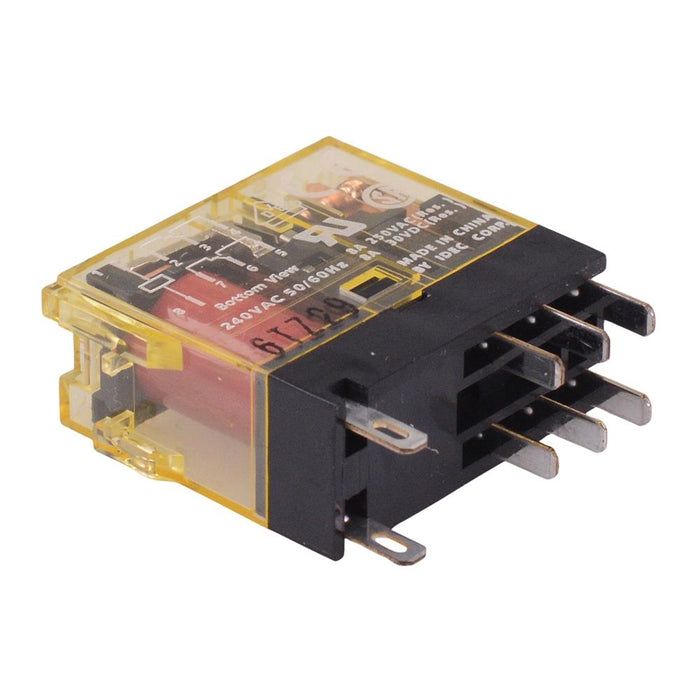

RJ2S-C-A240 240VAC Plug In Slim Power Industrial Relay 8A DPDT IDEC
by IDEC
SKU 493292
MPN: RJ2S-C-A240
Availability:
10 in stock
Original price
£8.25
-
Original price
£8.25
Original price
£8.25
£8.25
-
£8.25
Current price
£8.25
The RJS2-C-A240 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay is designed for various applications such as control panels and machine tools.
Coil voltage: 230VAC Switching current: 8A Without LED indicator Long mechanical life Contact rating: 8A 250VAC/DC Contact configuration: DPDT Plug-in terminals Compatible socketa: SJ2S-05B, SJ2S-07L, SJ2S-21L Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
Specification
| Ambient Temperature | -40°C to +70°C |
| Back Order Lead Time | 256 Days |
| Coil Resistance | 25,570Ω |
| Coil Voltage | 240VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 336VAC |
| Maximum Switching Current | 8A |
| Mechanical Life | 30,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.53W |
| Rated Load | 8A 250VAC |
| Terminal Type | Quick Connect |
