RJ2S-CL-A110 110VAC Plug In Slim Power Industrial Relay 8A DPDT IDEC
by IDEC
SKU 490217
MPN: RJ2S-CL-A110
Availability:
30 in stock
Original price
£8.05
-
Original price
£8.05
Original price
£8.05
£8.45
£8.45
-
£8.45
Current price
£8.45

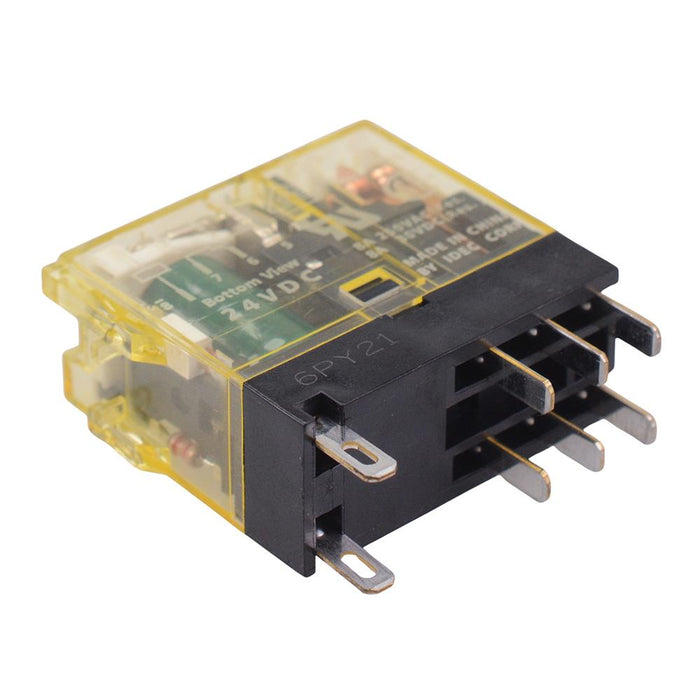

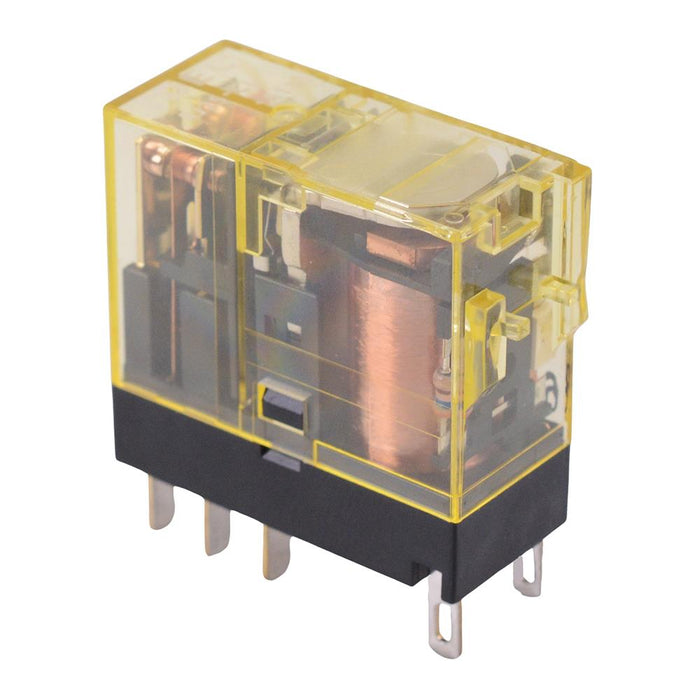

The RJS2-CL-A110 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.
Coil voltage: 110VAC Switching current: 8A With LED indicator Long mechanical life Contact rating: 8A 250VAC/DC Contact configuration: DPDT Plug-in terminals Compatible socketa: SJ2S-05B, SJ2S-07L, SJ2S-21L Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
Specification
| Ambient Temperature | -40°C to +70°C |
| Back Order Lead Time | 130 Days |
| Coil Resistance | 5270Ω |
| Coil Voltage | 110VAC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 154VAC |
| Maximum Switching Current | 8A |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.9VA |
| Terminal Type | Plug In |
