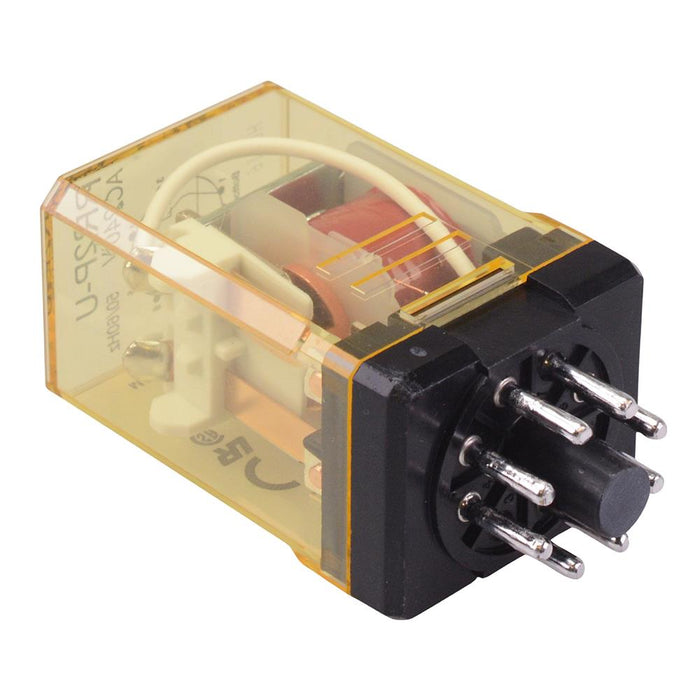

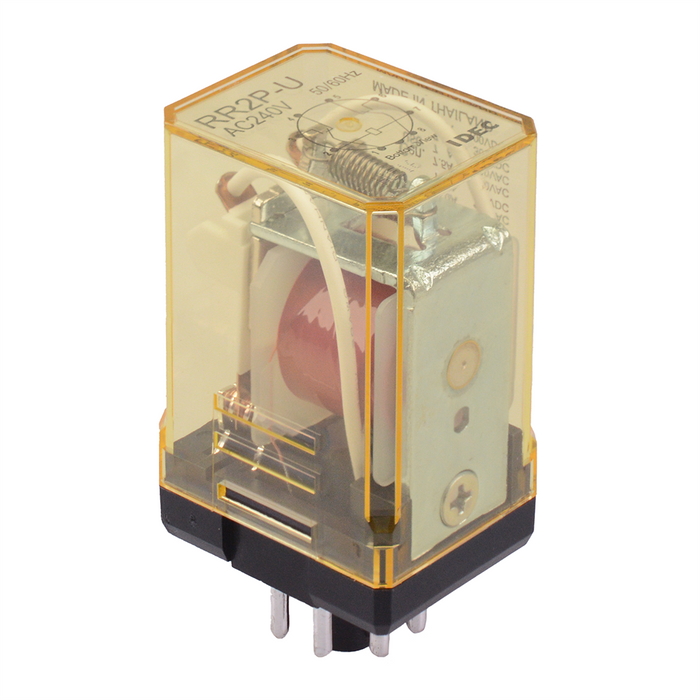

RR2P-UAC240V 240VAC PCB Power Industrial Relay 10A DPDT IDEC
by IDEC
SKU 493298
MPN: RR2P-UAC240V
Availability:
10 in stock
Original price
£13.99
-
Original price
£13.99
Original price
£13.99
£13.99
-
£13.99
Current price
£13.99
The RR2P-UAC240 is a 240VAC power relay featuring pin terminals and international approvals. The relay features a 10A contact rating and DPDT contacts, suitable for industrial applications.
Coil voltage: 240VAC Contact rating: 10A DPDT contacts Pin terminals Fits SR2P-05, SR2P-06, SR2P-05C, SR2P-51 sockets Body dimensions: 55.5 x 28.6 x 35.6mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 8,330Ω |
| Coil Voltage | 240VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 264VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 10,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 3VA |
| Rated Load | 1650VA / 300W |
| Terminal Type | Pin |
