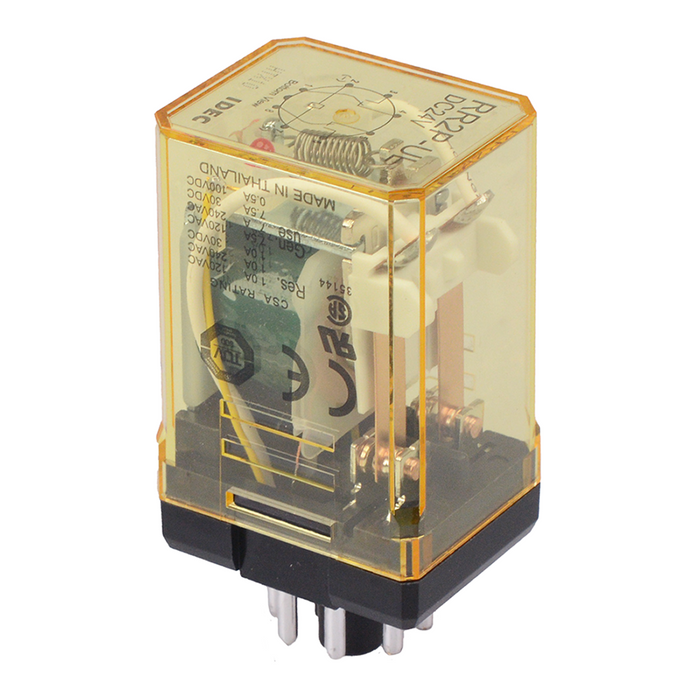

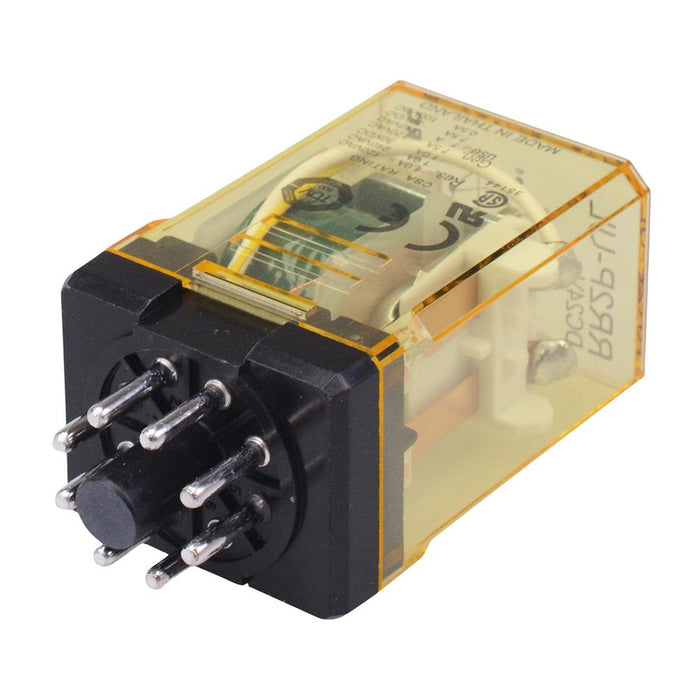

RR2P-ULDC24V 24VDC PCB Power Industrial Relay Indicator 10A DPDT IDEC
by IDEC
SKU 493300
MPN: RR2P-ULDC24V
Availability:
10 in stock
Original price
£17.22
-
Original price
£17.22
Original price
£17.22
£17.22
-
£17.22
Current price
£17.22
The RR2P-ULDC24 is a 24VDC power relay featuring pin terminals and international approvals. The relay features a 10A contact rating and DPDT contacts, suitable for industrial applications.
Coil voltage: 24VDC Contact rating: 10A DPDT contacts Pin terminals With indicator Fits SR2P-05, SR2P-06, SR2P-05C, SR2P-51 sockets Body dimensions: 55.5 x 28.6 x 35.6mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 400Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 10,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 1.5W |
| Rated Load | 1650VA / 300W |
| Terminal Type | Pin |
