RSCDN-45A 4-32VDC Slim Solid State Relay 45A IDEC
by IDEC
SKU 493362
MPN: RSCDN-45A
Availability:
10 in stock
Original price
£110.73
-
Original price
£110.73
Original price
£110.73
£110.73
£110.73
-
£110.73
Current price
£110.73

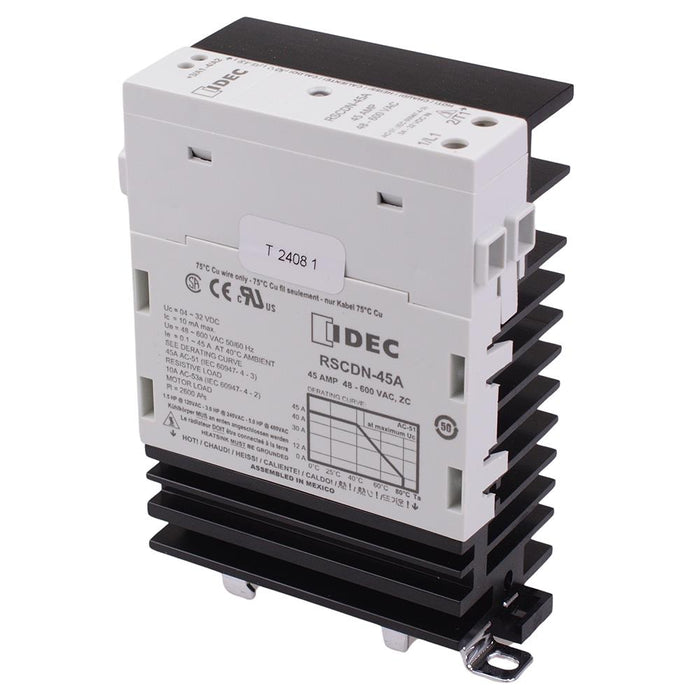

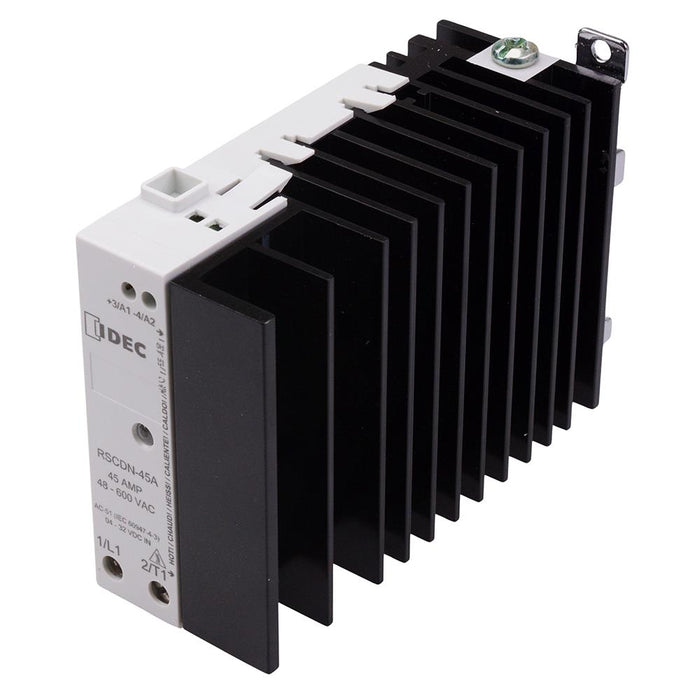

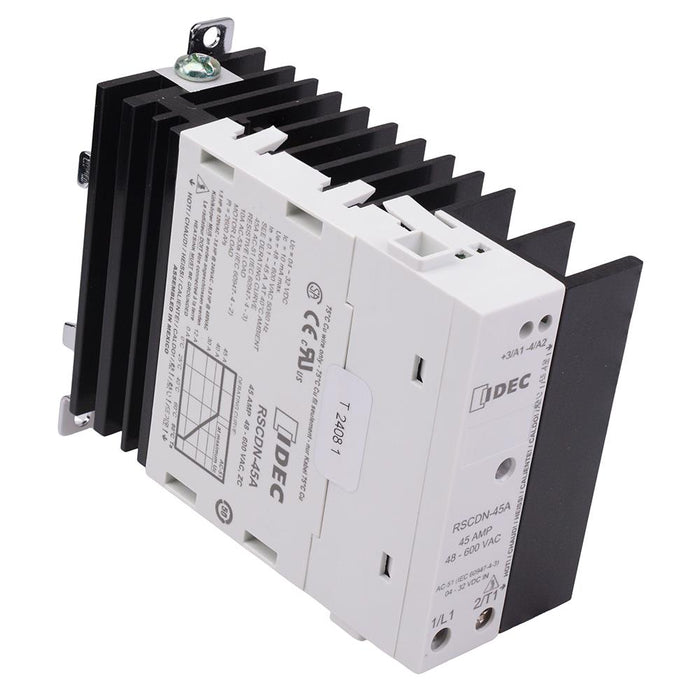

The RSCDN-45A is a solid state relay with built-in heatsink, featuring 45A continuous output current and 4-32VDC input. The relay features an input status LED indicator and back-to-back SCR output.
Output current: 45A Input: 4-32VDC Input status LED indicator Finger-safe terminals Mounting holes: 4.5mm diameter, 88.14mm apart Dimensions: 88.2 x 120.66 x 45mm (height x length x width)
Specification
| Back Order Lead Time | 256 Days |
| Maximum Switching Current | 45A |
| MOQ | 1 |
| Mounting Type | DIN Rail |
| Operating Voltage | 4-32VDC |
| Terminal Type | Screw |
