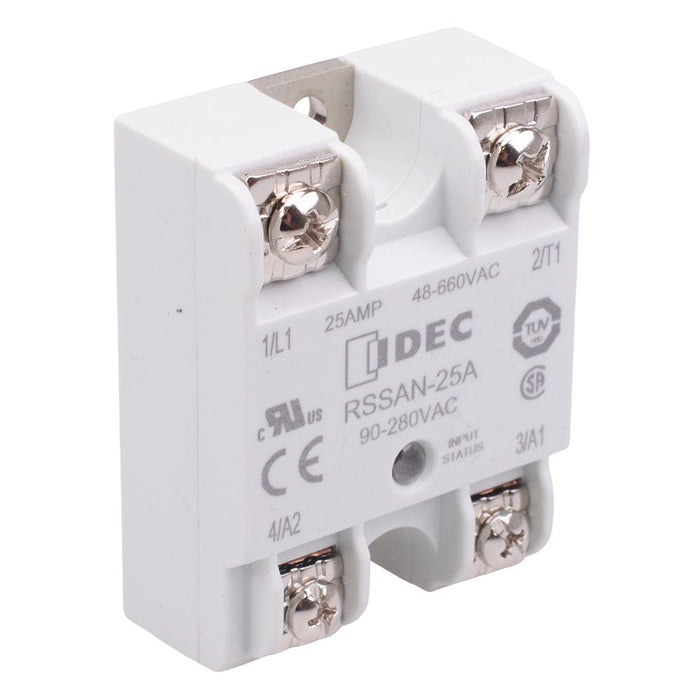

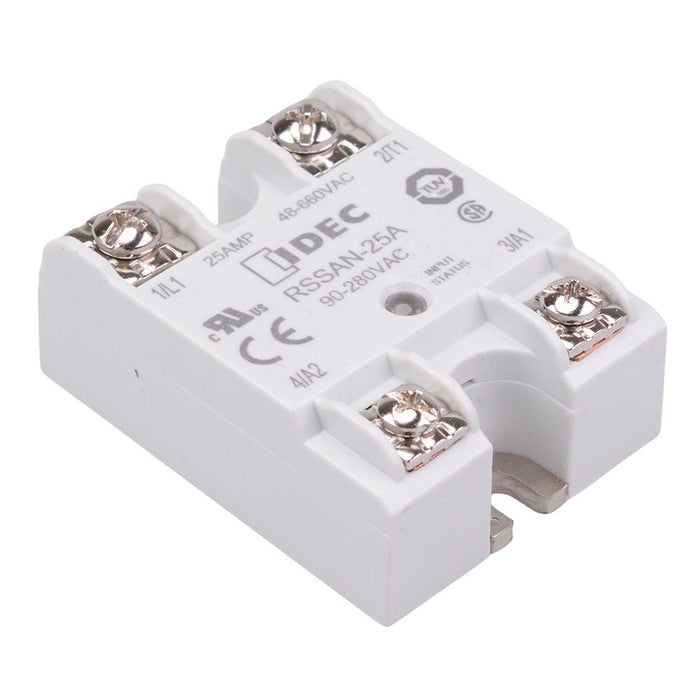

RSSAN-25A 90-280VAC Panel Mount Solid State Relay 25A IDEC

by IDEC
SKU 493363

MPN: RSSAN-25A

Availability:
10 in stock
Original price $78.53 - Original price $78.53
Original price $78.53
$78.53
$78.53 - $78.53
Current price $78.53
The RSSAN-25A is a panel mount solid state relay featuring 25A continuous output current and 90-280VAC input. The relay features an input status LED indicator and dual SCR output.

  • Output current: 25A
  • Input: 90-280VAC
  • Input status LED indicator
  • Mounting holes: 4.5mm diameter, 47.6mm apart
  • Dimensions: 67.31 x 48.26 x 24.1mm (height x length x width)
  • Specification
    Back Order Lead Time 256 Days
    Contact Arrangement SPST-NO
    Maximum Switching Current 25A
    MOQ 1
    Mounting Type Panel Mount
    Number of Contacts 4
    Operating Voltage 90-280VAC
    Terminal Type Screw
