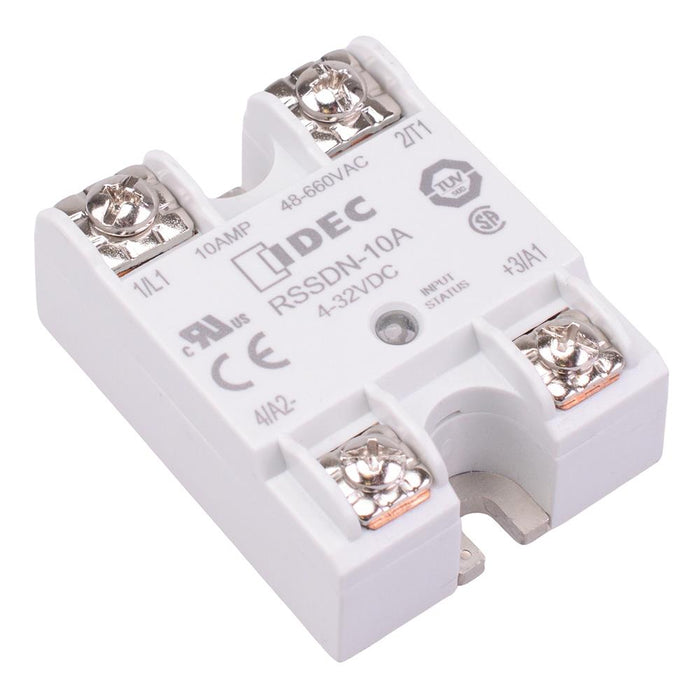

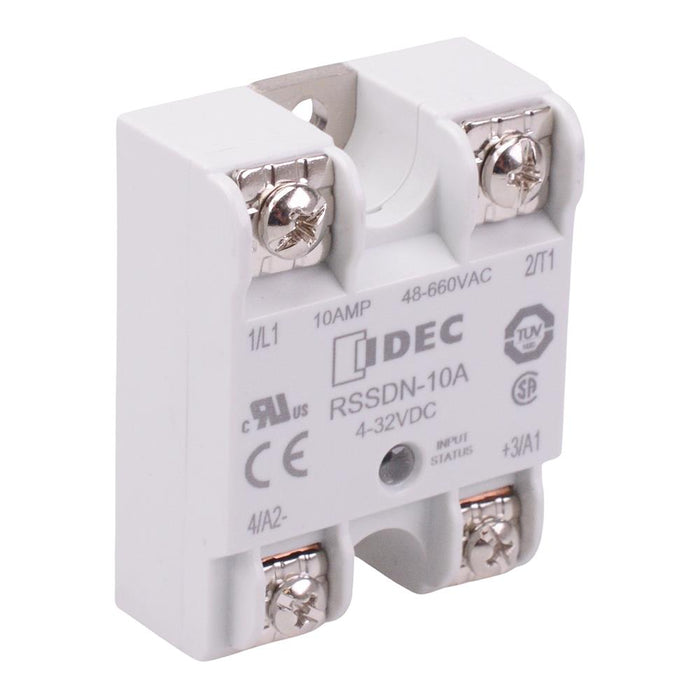

RSSDN-10A 4-32VDC Panel Mount Solid State Relay 10A IDEC
by IDEC
SKU 493365
MPN: RSSDN-10A
Availability:
10 in stock
Original price
£43.41
-
Original price
£43.41
Original price
£43.41
£43.41
£43.41
-
£43.41
Current price
£43.41
The RSSDN-10A is a panel mount solid state relay featuring 10A continuous output current and 4-32VDC input. The relay features an input status LED indicator and dual SCR output.
Output current: 10A Input: 4-32VDC Input status LED indicator Mounting holes: 4.5mm diameter, 47.6mm apart Dimensions: 67.31 x 48.26 x 24.1mm (height x length x width)
Specification
| Back Order Lead Time | 256 Days |
| Maximum Switching Current | 10A |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Number of Contacts | 4 |
| Operating Voltage | 4-32VDC |
| Terminal Type | Screw |
