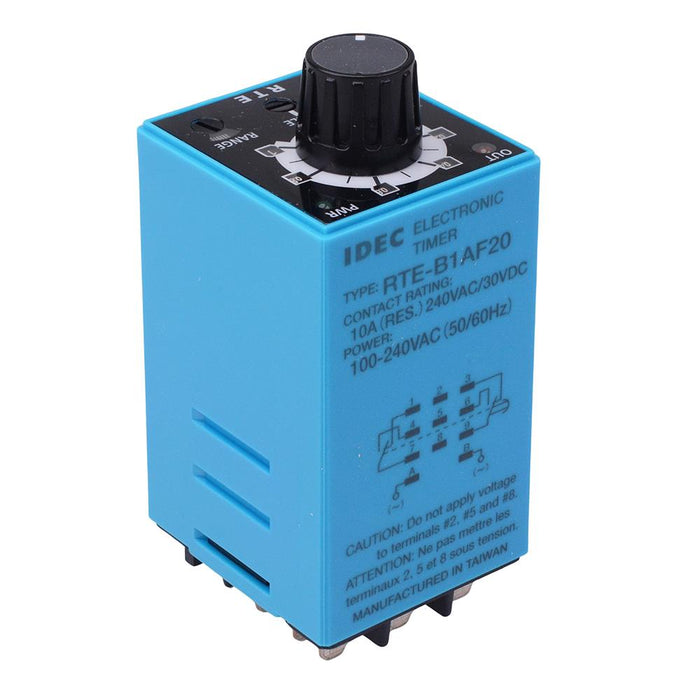

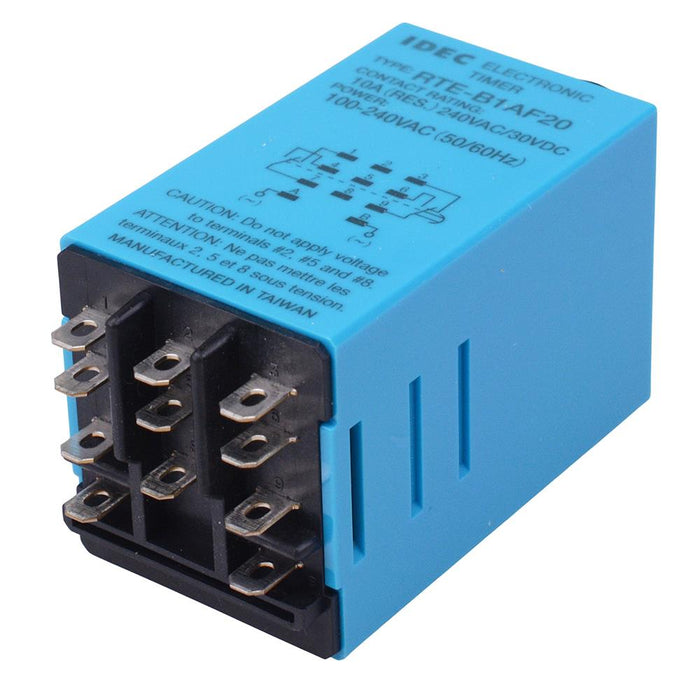

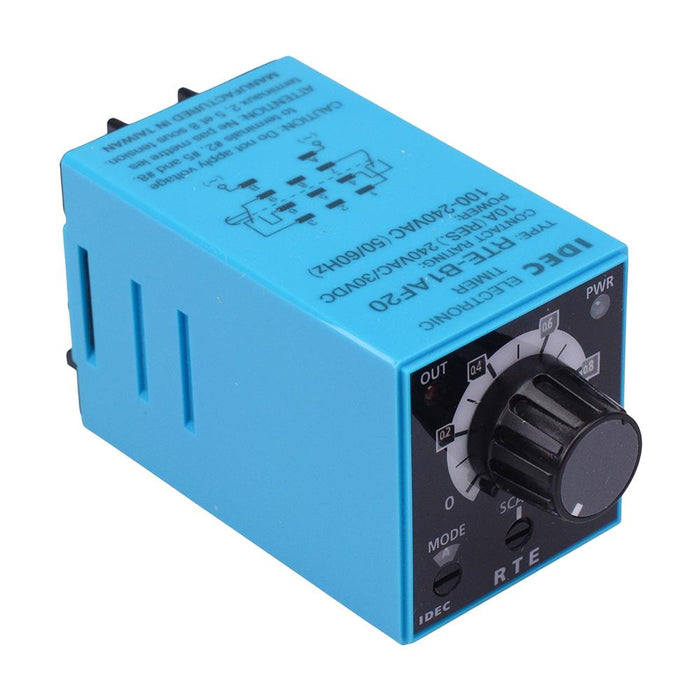

RTE-B1AF20 100-240VAC Time Delay Relay Blade Terminals 10A DPDT IDEC
by IDEC
SKU 493304
MPN: RTE-B1AF20
Availability:
Only 4 left!
Original price
£62.54
-
Original price
£62.54
Original price
£62.54
£62.54
£62.54
-
£62.54
Current price
£62.54
The RTE-B1AF20 is a highly reliable, analog timer relay housed in a space-saving package, featuring up to 20 selectable time ranges from 0.1 seconds to 600 hours. The timer features DPDT contacts and 10A continous current rating. The timer is suitable for applications including industrial control panels.
Plug-in blade terminals Power triggered Function: ON-delay, interval, cycle OFF, cycle ON Input voltage: 100 to 240VAC Contacts: 2 form C, DPDT Time delay: 0.1 seconds to 600 hours ON and timing OUT LED indicator Contact rating: 240VAC / 30VDC 10A
Specification
| Back Order Lead Time | 256 Days |
| Contact Arrangement | DPDT |
| Maximum Switching Current | 10A |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 11 |
| Power Consumption | 11.6VA |
| Terminal Type | Blade |
