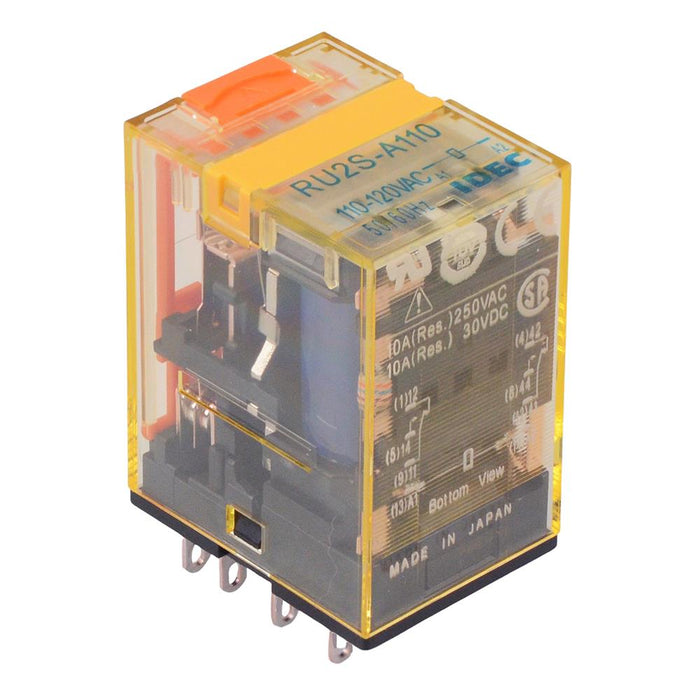

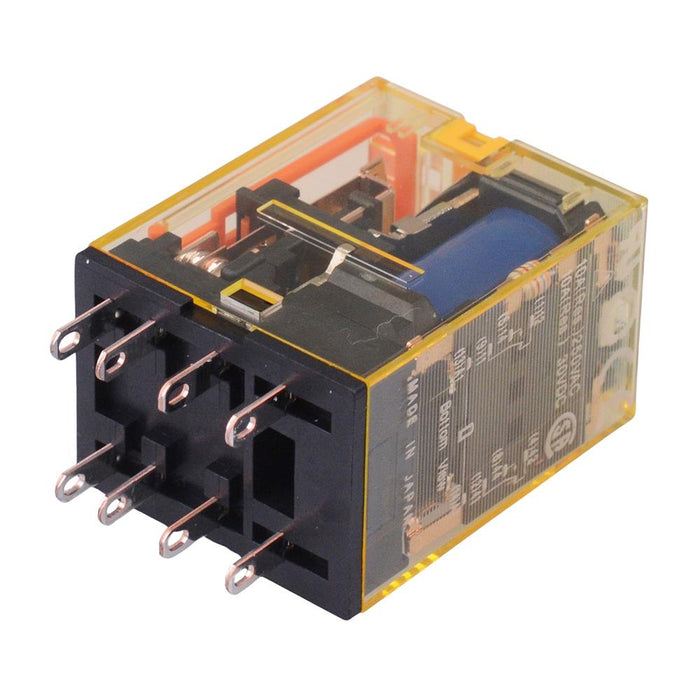

RU2S-A110 110-120VAC Plug In Power Relay Lever 10A DPDT IDEC
by IDEC
SKU 493307
MPN: RU2S-A110
Availability:
10 in stock
Original price
£9.11
-
Original price
£9.11
Original price
£9.11
£9.11
-
£9.11
Current price
£9.11
The RU2S-A110 is a 110-120VAC general purpose power relay featuring an LED indicator and DPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 110-120VAC Contact rating: 10A DPDT contacts With latching lever Non polarised LED indicator Solder-free construction Quick connect terminals Fits RU series double pole mounting socket Dimensions: 35 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 4,550Ω |
| Coil Voltage | 110-120VAC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 121-132VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 1.1 to 1.4VA |
| Rated Load | 10A 250VAC / 30VDC |
| Terminal Type | Blade |
