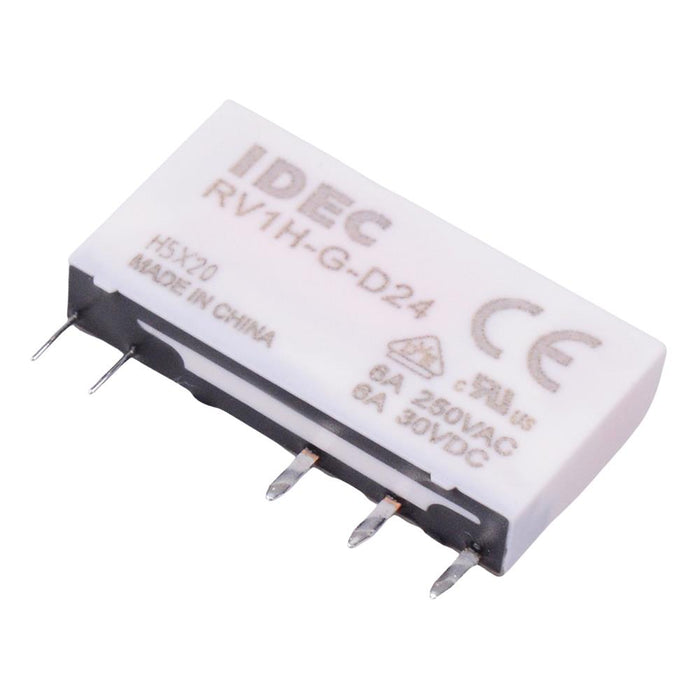

RV1H-G-D24 24VDC Relay 6A SPDT IDEC
by IDEC
SKU 493320
MPN: RV1H-G-D24
Availability:
10 in stock
Original price
£5.70
-
Original price
£5.70
Original price
£5.70
£5.70
-
£5.70
Current price
£5.70
The RV1H-G-D24 is a replacement SPDT relay with a 24VDC coil, compatible with the RV8H series of interface relays by IDEC.
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 2,270Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 6A |
| Maximum Switching Voltage | 400VAC, 125VDC |
| Mechanical Life | 10,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 0.2W |
| Rated Load | 6A 250VAC / 30VDC |
| Terminal Type | Pin |
