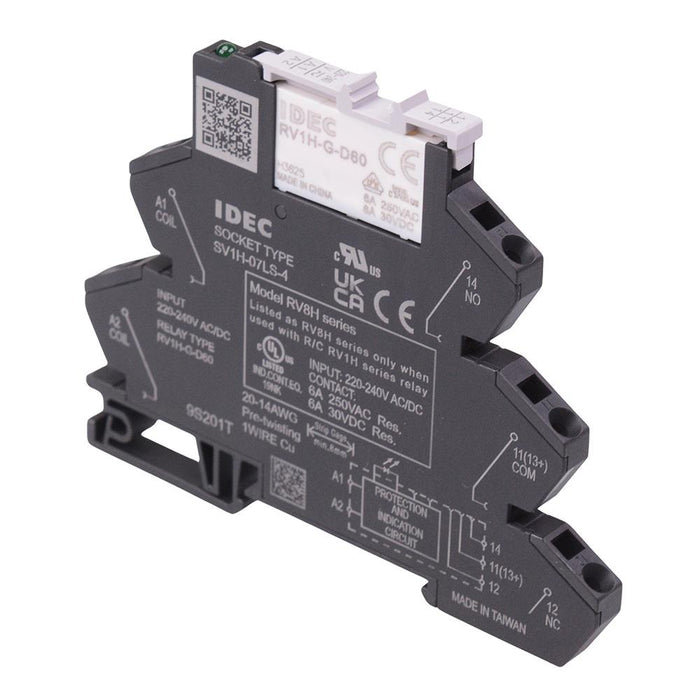

RV8H-S-AD220 DIN Mount 220V 8mm Slim Interface Relay Spring Clamp Terminals SPDT IDEC

by IDEC
SKU 490246

MPN: RV8H-S-AD220

Availability:
10 in stock
Original price £15.36 - Original price £15.36
Original price
£15.36
£15.36 - £15.36
Current price £15.36
The RV8H-S-AD220 is a interface relay by IDEC providing a compact solution for general purpose requirements. The relay can be used as a universal interface between the controller and the actuator to switch small and medium size loads. Installation time is greatly reduced with pre-assembled relays and socket. The relays are suitable for PLC and other controller outputs, industrial automation, panel builders, assembly machine applications, and other that require a high switching capability in a compact space.

  • Coil voltage: 220VAC/DC
  • Allowable switching curent: 6A
  • Contact configuration: SPDT
  • DIN rail mounting
  • Spring clamp terminals
  • Universal AC/DC socket with surge suppression and green LED indicator
  • Reverse polarity protected
  • Release lever for easy locking and removal of relay
  • Dimensons: 88.0 x 69.6 x 6.0mm (Height x depth x width)
  • Specification
    Ambient Temperature -40°C to +70°C
    Back Order Lead Time 130 Days
    Coil Voltage 220VAC/DC
    Contact Arrangement SPDT
    Maximum Continuous Voltage 242VAC/DC
    Maximum Switching Current 6A
    MOQ 1
    Mounting Type DIN Rail
    Power Consumption 0.85W
    Rated Load 6A 250VAC, 6A 30VDC
    Terminal Type Spring Clamp
