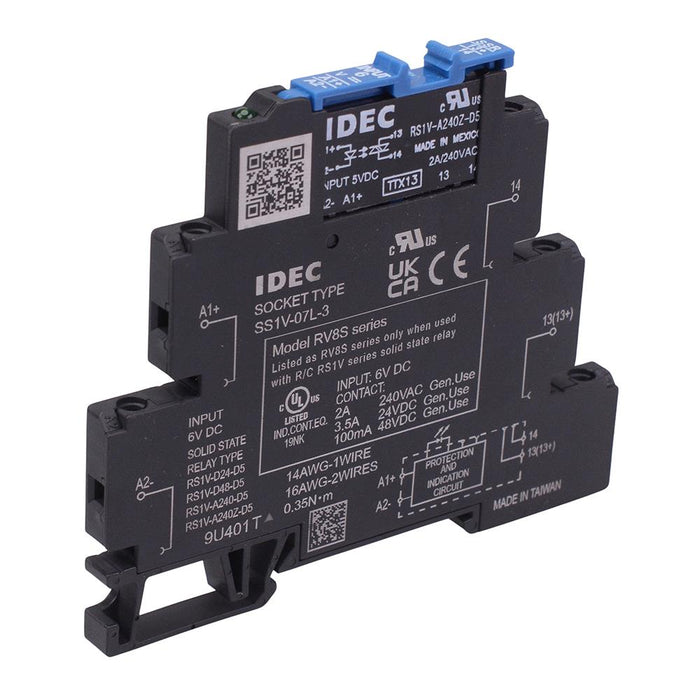

RV8S-L-A240Z-D6 DIN Mount 240VAC 6mm Slim Interface Solid State Relay SPDT IDEC
by IDEC
SKU 493322
MPN: RV8S-L-A240Z-D6
Availability:
Only 5 left!
Original price
£35.37
-
Original price
£35.37
Original price
£35.37
£35.37
-
£35.37
Current price
£35.37
The RV8S-L-A240Z-D6 is a solid state interface relay by IDEC providing a compact solution for general purpose requirements. The relay can be used as a universal interface between the controller and the actuator to switch small and medium size loads. Installation time is greatly reduced with pre-assembled relays and socket. The relays are suitable for PLC and other controller outputs, industrial automation, panel builders, assembly machine applications, and other that require a high switching capability in a compact space.
Input voltage: 6VDC Output voltage: 240VAC, 2A zero cross Allowable switching curent: 6A Contact configuration: SPDT DIN rail mounting Screw terminals Universal AC/DC socket with surge suppression and green LED indicator Reverse polarity protected Release lever for easy locking and removal of relay Dimensions: 88.0 x 69.6 x 6.0mm (Height x depth x width)
Specification
| Ambient Temperature | -20°C to +60°C |
| Back Order Lead Time | 256 Days |
| Contact Arrangement | SPDT |
| Input Voltage | 6VDC |
| Maximum Switching Current | 6A |
| MOQ | 1 |
| Mounting Type | DIN Rail |
| Number of Contacts | 5 |
| Operating Voltage | 24-280VAC |
| Output Voltage | 240VAC, 2A zero cross |
| Rated Load | 2A |
| Terminal Type | Screw |
