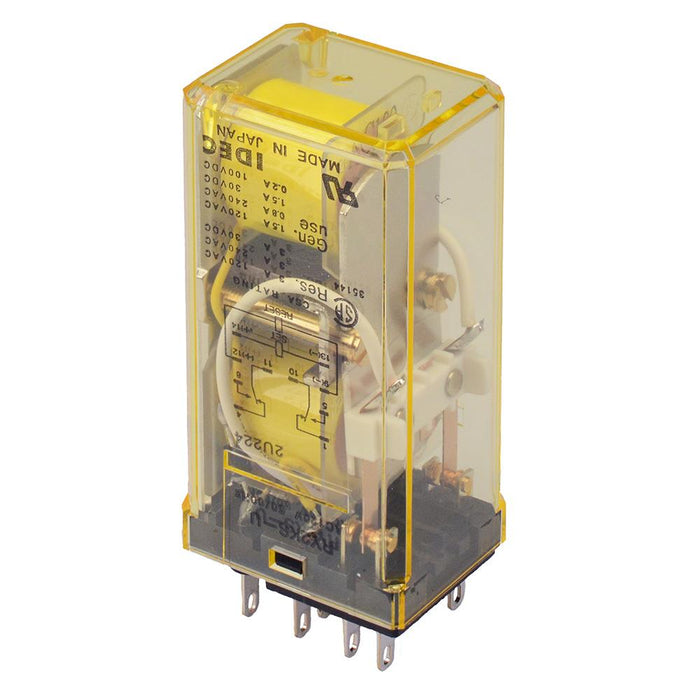

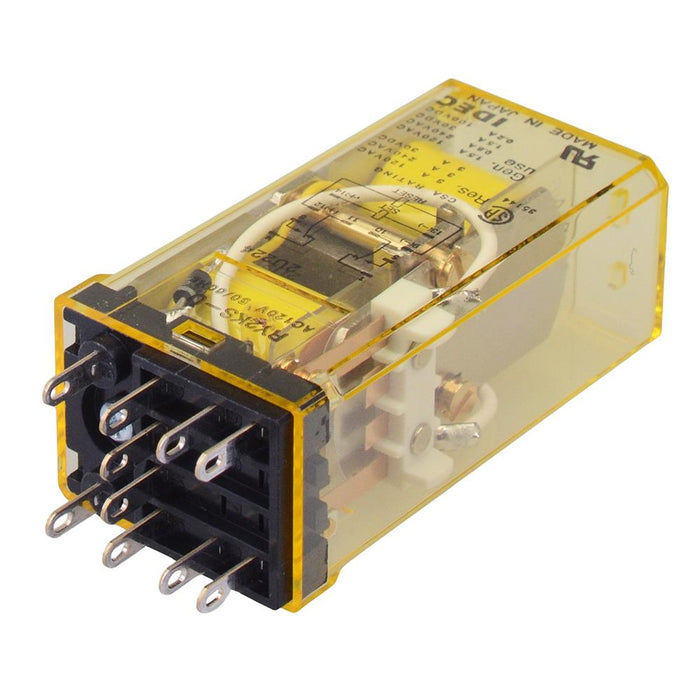

RY2KS-UAC120V 120VAC Plug In Latching Relay 3A DPDT IDEC
by IDEC
SKU 493326
MPN: RY2KS-UAC120V
Availability:
10 in stock
Original price
£48.28
-
Original price
£48.28
Original price
£48.28
£48.28
-
£48.28
Current price
£48.28
The RY2KS-UAC120 is a 120VAC latching relay featuring a self-holding function using permanent magnets in the magnetic circuit. Applying a voltage on the set (or reset) coil operates the armature and retains the contacts in that position until the opposite coil is energized, hence the latch relays are ideal for memory and flip-flop circuit applications.
Coil voltage: 120VAC Contact rating: 3A DPDT contacts Plug-in terminals Fits SY4S-05, SY4S-05C, SY4S-51, SY4S-61, SY4S-62 sockets Body dimensions: 55.3 x 21 x 27.5mm (height x width x length)
Specification
| Ambient Temperature | -5°C to +40°C |
| Back Order Lead Time | 256 Days |
| Coil Resistance | 3,840Ω |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 132VAC |
| Maximum Switching Current | 3A |
| Maximum Switching Voltage | 250VAC, 125VDC |
| Mechanical Life | 5,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 10 |
| Rated Load | 600VA AC, 90W DC |
| Terminal Type | Blade |
