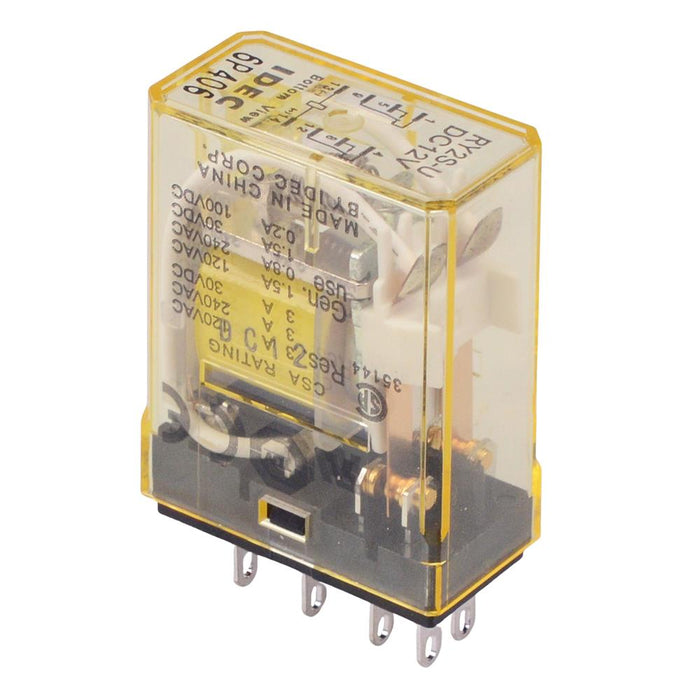

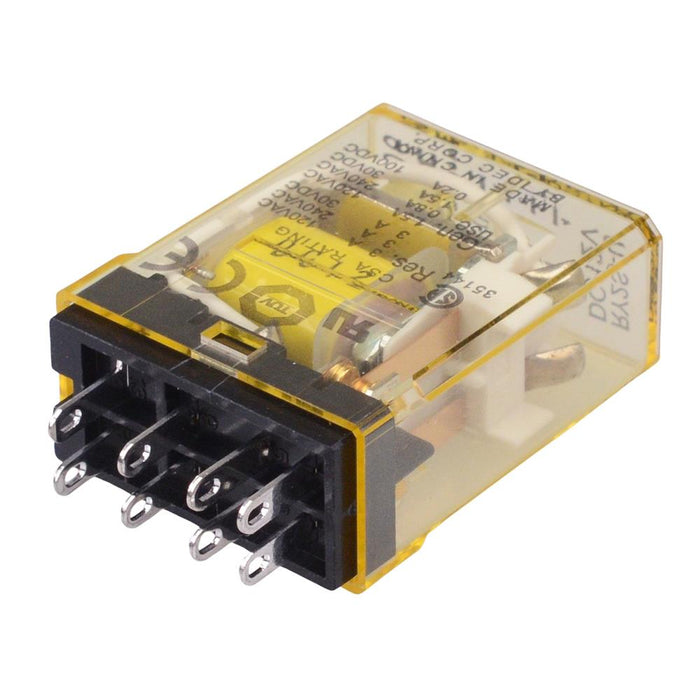

RY2S-UDC12V 12VDC Plug In Miniature Power Relay 3A DPDT IDEC
by IDEC
SKU 493327
MPN: RY2S-UDC12V
Availability:
10 in stock
Original price
£9.40
-
Original price
£9.40
Original price
£9.40
£9.40
-
£9.40
Current price
£9.40
The RY2S-UDC12 is a 12VDC miniature power relay featuring plug-in terminals and international approvals. The relay features a 3A contact rating and DPDT contacts, suitable for industrial applications.
Coil voltage: 12VDC Contact rating: 3A DPDT contacts Plug-in terminals Fits SY2S-05, SY2S-05C, SY2S-51, SY2S-61 sockets Body dimensions: 35.6 x 14 x 27.5mm (height x width x length)
Specification
| Ambient Temperature | -25°C to +55°C |
| Back Order Lead Time | 256 Days |
| Coil Resistance | 188Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 13.2VDC |
| Maximum Switching Current | 3A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.8W |
| Rated Load | 660VA AC, 90W DC |
| Terminal Type | Blade |
