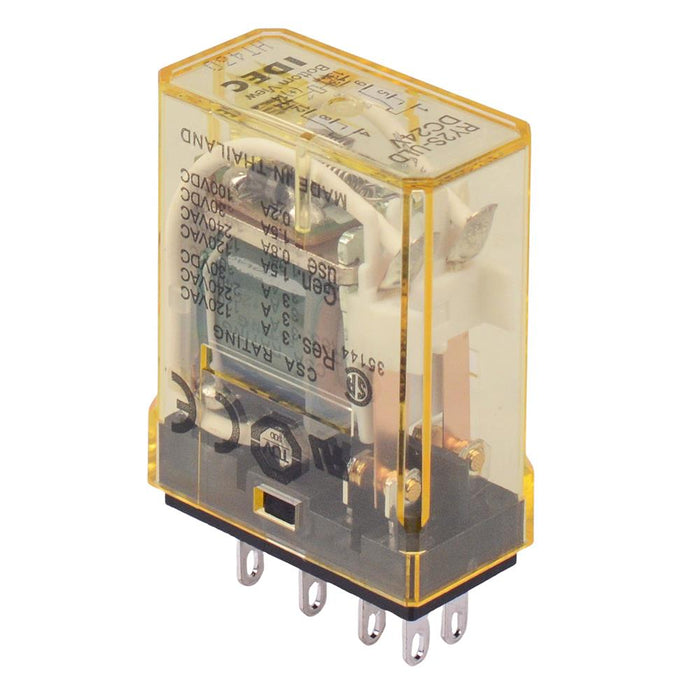

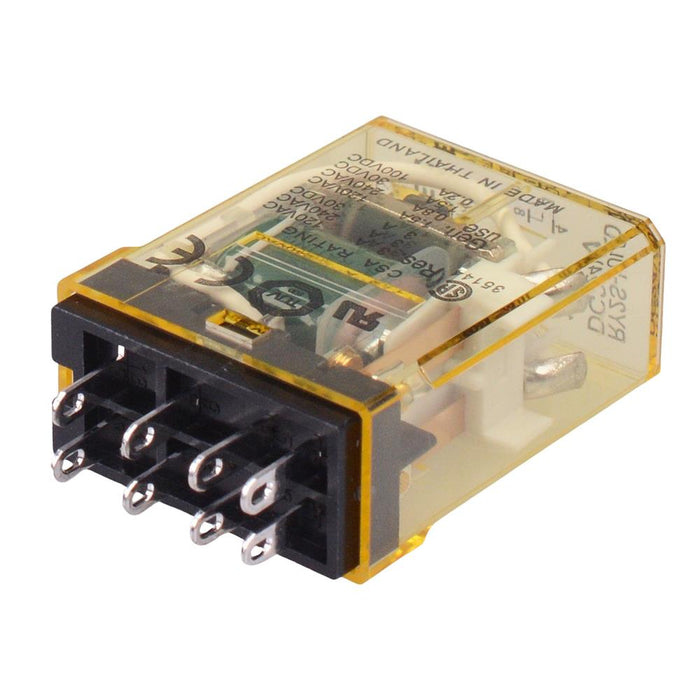

RY2S-ULDDC24V 24VDC Plug In Miniature Power Relay Indicator Diode 3A DPDT IDEC
by IDEC
SKU 493330
MPN: RY2S-ULD-DC24V
Availability:
10 in stock
Original price
£13.27
-
Original price
£13.27
Original price
£13.27
£13.27
-
£13.27
Current price
£13.27
The RY2S-ULDDC24 is a 24VDC miniature power relay featuring plug-in terminals and international approvals. The relay features a 3A contact rating and DPDT contacts, suitable for industrial applications.
Coil voltage: 24VDC Contact rating: 3A With diode With indicator DPDT contacts Plug-in terminals Fits SY2S-05, SY2S-05C, SY2S-51, SY2S-61 sockets Body dimensions: 35.6 x 14 x 27.5mm (height x width x length)
Specification
| Ambient Temperature | -25°C to +55°C |
| Back Order Lead Time | 256 Days |
| Coil Resistance | 750Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 3A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.8W |
| Rated Load | 660VA AC, 90W DC |
| Terminal Type | Blade |
