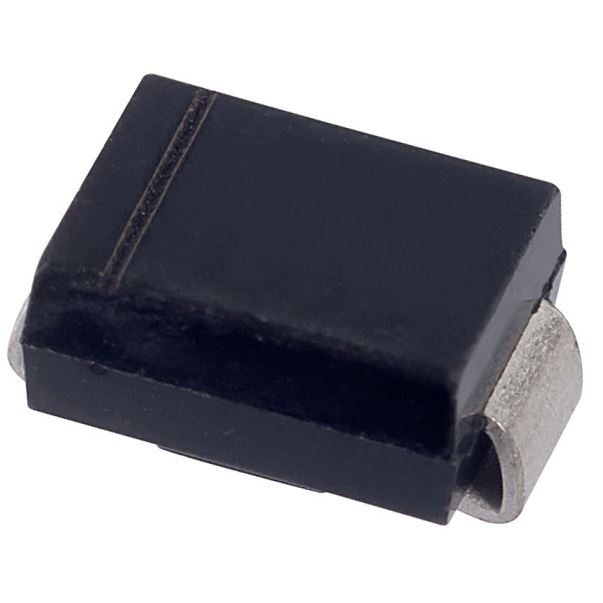

S1D Surface Mount Rectifier Diode 1A 200V SMB

SKU 552231


785 in stock
Original price £0.16 - Original price £0.16
Original price
£0.16 Inc VAT
£0.16 - £0.16
Current price £0.16 Inc VAT
S1D surface mount rectifier diode featuring a 1A average rectified output current and 200V peak reverse voltage, housed in a UL 94V-0 flame retardant plastic SMB package.

  • Suitable for surface mount applications
  • Low leakage current
  • Glass passivated junction
  • Low profile package
  • Polarity indicator
  • Specification
    Average rectified current 1A
    Back order lead time 5 Days
    Body dimensions 4.7 x 3.9 x 2.4mm (Length x Width x Height)
    Maximum dc blocking voltage 200V
    Maximum forward voltage 1.1V
    Maximum rms voltage 140V
    Moq 10
    Mounting style Surface Mount
    Operating temperature -65°C to 175°C
    Package DO-214AA
    Packaging Tape
    Peak reverse voltage 200V
    Peak surge current 30A
