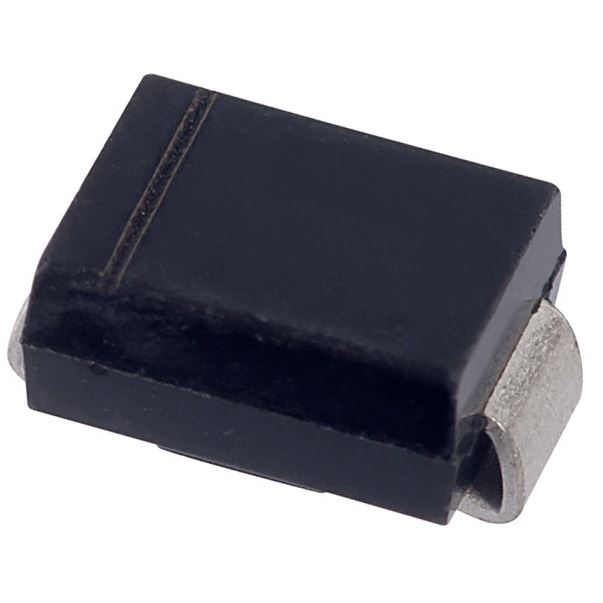

S1D Surface Mount Rectifier Diode 1A 200V SMB
SKU 552231
MPN: S1D
Availability:
145 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
S1D surface mount rectifier diode featuring a 1A average rectified output current and 200V peak reverse voltage, housed in a UL 94V-0 flame retardant plastic SMB package.
Suitable for surface mount applications Low leakage current Glass passivated junction Low profile package Polarity indicator
Specification
| Average Rectified Current | 1A |
| Back Order Lead Time | 5 Days |
| Body Dimensions | 4.7 x 3.9 x 2.4mm (Length x Width x Height) |
| Maximum DC Blocking Voltage | 200V |
| Maximum Forward Voltage | 1.1V |
| Maximum RMS Voltage | 140V |
| MOQ | 10 |
| Mounting Style | Surface Mount |
| Operating Temperature | -65°C to 175°C |
| Package | DO-214AA |
| Packaging | Tape |
| Peak Reverse Voltage | 200V |
| Peak Surge Current | 30A |
