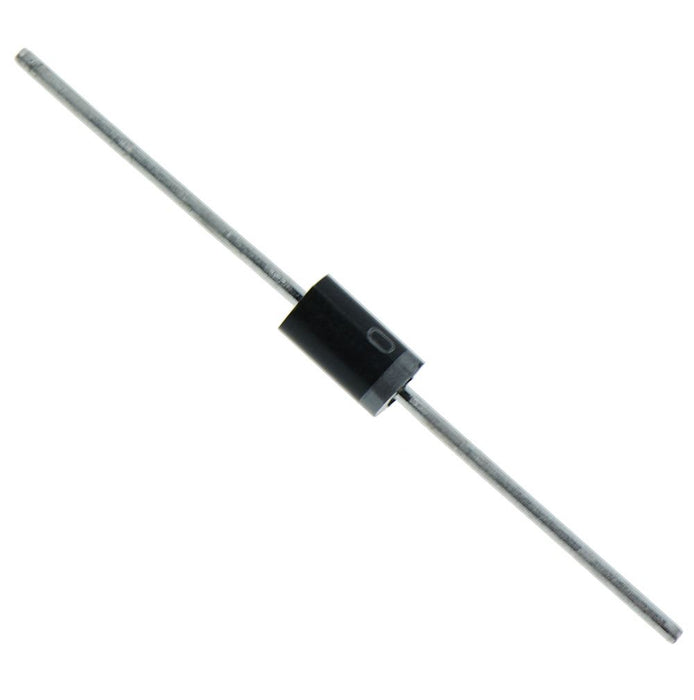

SB5100 Schottky Barrier Rectifier Diode 5A 100V
SKU 402038
MPN: SB5100
Availability:
2055 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
£0.22
£0.22
-
£0.22
Current price
£0.22
Schottky barrier power diode with a high efficiency and low loss suitable for applications where a high forward rectified current is required.
High forward surge current capability 100V maximum repetitive peak reverse voltage 5A maximum average forward rectified current DO-201AD package 1.3mm lead diameter
Specification
| Average Rectified Current | 5A |
| Back Order Lead Time | 40 Days |
| Body Dimensions | 9.5 x 5.6mm (Length x Diameter) |
| Lead Dimensions | 25.4 x 1.3mm (Length x Diameter) |
| Maximum DC Blocking Voltage | 100V |
| Maximum Forward Voltage | 0.85V |
| Maximum RMS Voltage | 70V |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 150°C |
| Package | DO-201AD |
| Packaging | Tape |
| Peak Reverse Voltage | 100V |
| Peak Surge Current | 150A |
