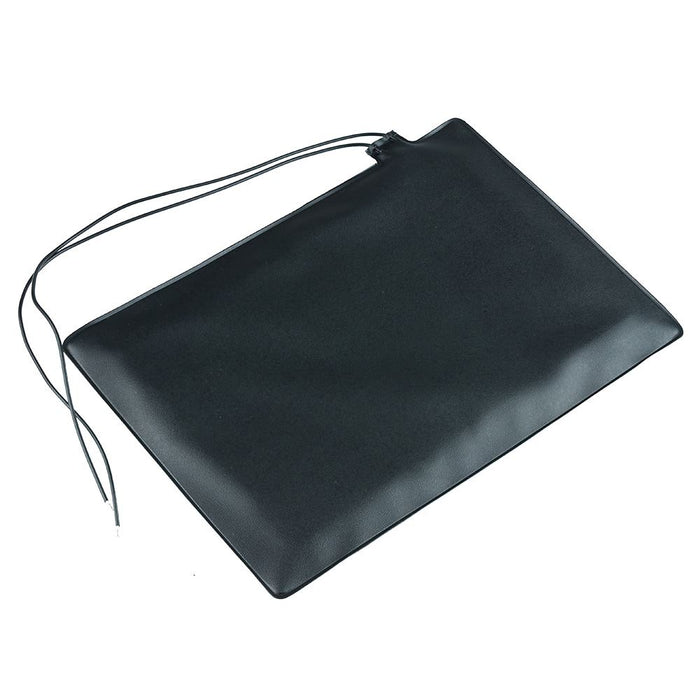

Small Increased Sensitivity Pressure Mat Pad 230 x 160mm

by Comus
SKU 552452

MPN: MAC-160-B-300-2

Availability:
15 in stock
Original price £15.31 - Original price £15.31
Original price
£15.31
£15.31 - £15.31
Current price £15.31
Small increased pressure sensitive mat featuring NO contacts, suitable for applications including alarm systems, automatic doors, patient bed monitoring and seat occupancy detection.

  • Normally open contacts
  • Dimensions: 230 x 160 x 3mm
  • Operating pressure: 25kg over 50mm²
  • Mat material: Seem welded PVC
  • 300mm of 0.22mm² Black PVC insulated cable
  • Maximum switching voltage: 25V DC
  • Maximum switching current: 0.25A
  • Specification
    Back Order Lead Time 120 Days
    Colour Black
    Contact Configuration Normally Open
    Current Rating 0.25A
    Operating Force 25Kg over 50mm²
    Protection Level IP64
    Voltage Rating 25VDC
