Small SMD Grade 2 NO Proximity Switch and Magnet Set 500mA 50V - CEA205, S2023A
by Comus
SKU 552638
MPN: S2023A
Availability:
7 in stock
Original price
£8.83
-
Original price
£8.83
Original price
£8.83
Inc VAT
£8.83
-
£8.83
Current price
£8.83
Inc VAT

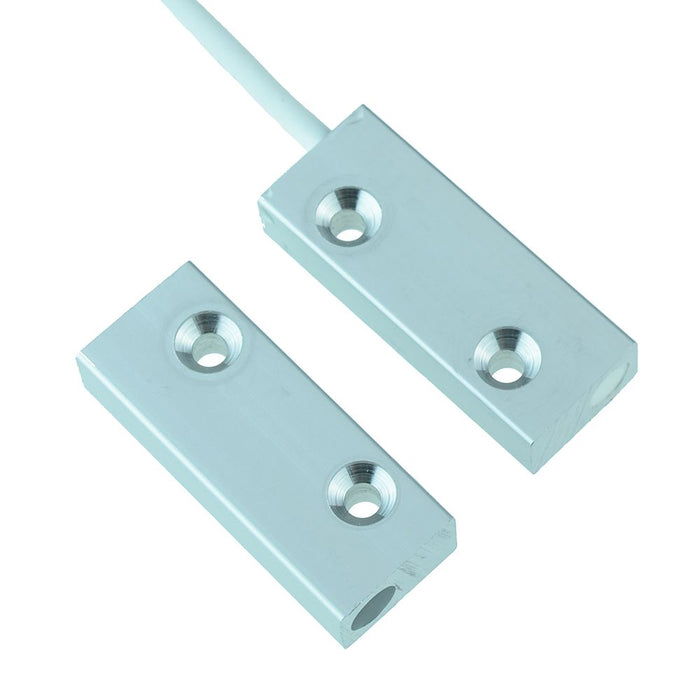

The CEA205 is a flush mounting proximity reed switch and magnet set, featuring normally open contacts and aluminium housing. The switch is suitable for applications including alarm systems, appliance switching, production automation and safety door guards.
Security grade 2 to BS EN 50131-1 Normally open contacts Supervisory loop Operating distance: 15mm Maximum switching voltage: 50V AC/DC Maximum switching current: 0.5A Maximum switching capacity: 10W/VA Aluminium housing 500mm cable
Specification
| Back order lead time | 180 Days |
| Carry current | 0.8A |
| Contact configuration | SPST-NO |
| Material | Aluminium |
| Maximum switching capacity | 10W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 50VAC/DC |
| Operating temperature | -40°C to +85°C |
