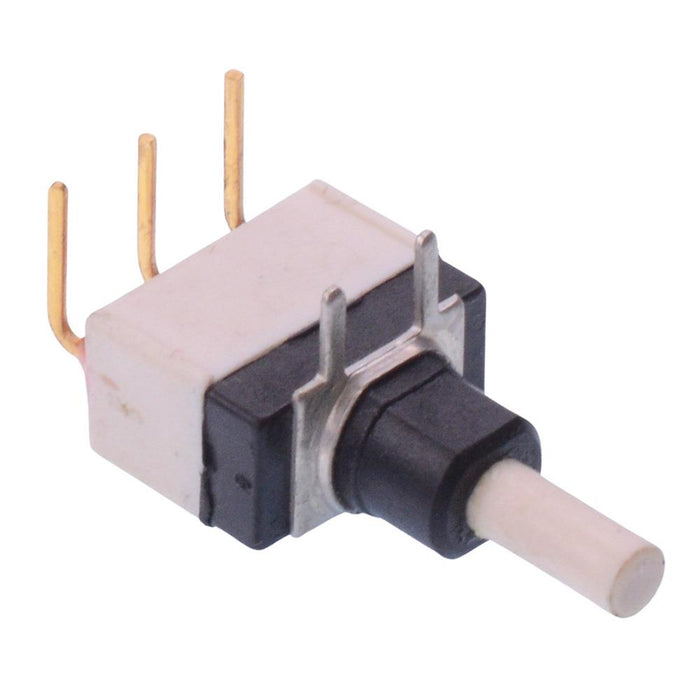

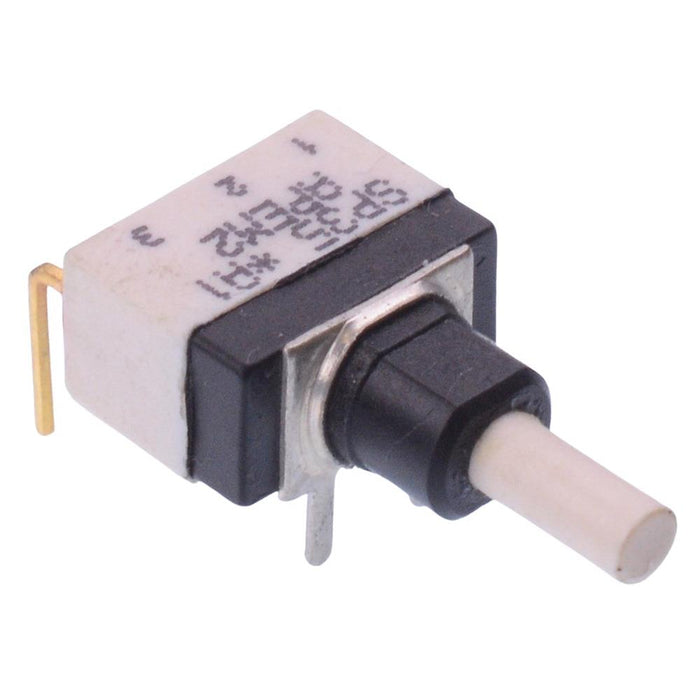

SP35W000000 APEM Off-(On) Momentary Snap-Action Right Angle Push Button Switch SPST
by APEM
SKU 487691
MPN: SP35W000000
Back Order Availability:
Availability:
50 in stock, ready to be shipped
Original price
£4.90
-
Original price
£4.90
Original price
£4.90
Inc VAT
£4.90
-
£4.90
Current price
£4.90
Inc VAT
The SP35W000000 is a washable momentary snap-action push button swich with front and rear sealing. The switch features right angle gold plated brass terminals, suitable for horizontal PCB mounting.
SPST contacts Off-(On) momentary function Right angle, horizontal mounting Terminal pitch: 4.7mm Rating: 100mA 30VDC Gold plated brass terminals
Specification
| Actuation | Momentary |
| Contact configuration | SPST |
| Contact material | Gold Plated Brass |
| Contact rating | 0.1A 30VDC |
| Current rating | 0.1A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Product series | SP |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
