SPDT Reed Switch 200mA 30V - 8602-0551-020
by Comus
SKU 552478
MPN: 8602-0551-020
Availability:
Out of stock
Sold out
Original price
£3.93
-
Original price
£3.93
Original price
£3.93
£3.93
£3.93
-
£3.93
Current price
£3.93

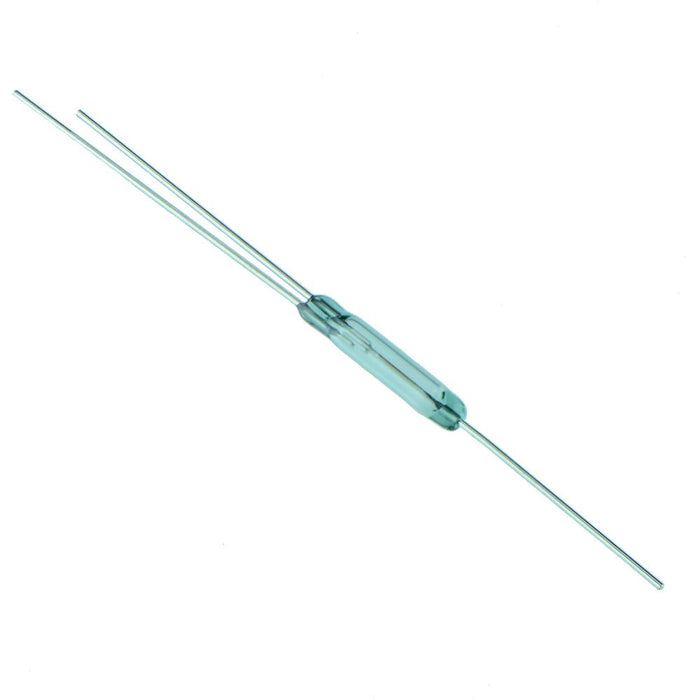

8602-0551-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features changeover contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Changeover contacts Maximum switching voltage: 30V AC/DC Maximum switching current: 0.2A Maximum switching power: 3VA Pull-in sensitivity: 15-30AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 1.5ms |
| Carry Current | 0.5A |
| Contact Configuration | SPDT |
| Diameter | 2.54mm |
| Drop Out Sensitivity | 4AT Min |
| Length | 14mm |
| Material | Rhodium |
| Maximum Switching Capacity | 3VA |
| Maximum Switching Current | 0.2A |
| Maximum Switching Voltage | 30VAC/DC |
| Operating Temperature | -40°C to +125°C |
| Pull In Sensitivity | 15-30AT |
| Release Time | 0.5ms |
