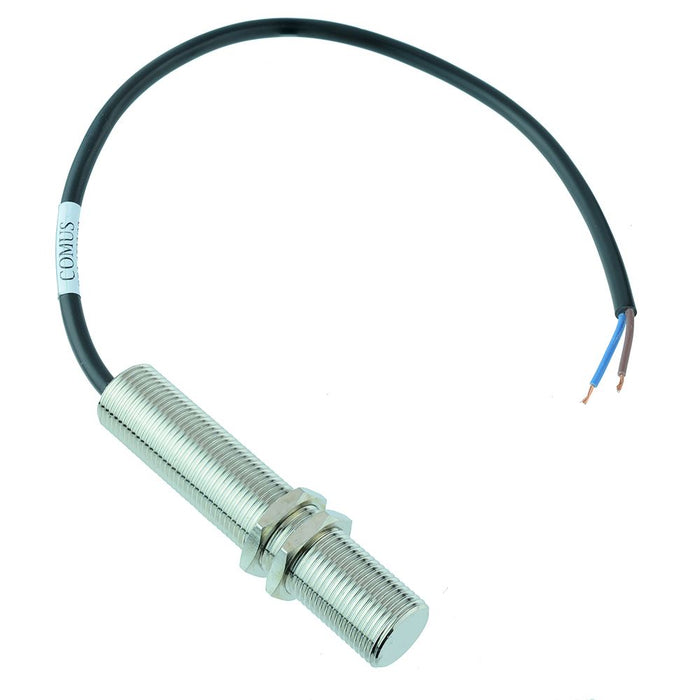

SPNO M18 Cylindrical Proximity Sensor Switch - PTA 1500/30, S1389
by Comus
SKU 552581
MPN: S1389
Availability:
20 in stock
Original price
£33.36
-
Original price
£33.36
Original price
£33.36
£33.36
£33.36
-
£33.36
Current price
£33.36
The PTA 1500/30 is a cylindrical magnetic proximity reed switch featuring a M18 thread manufactured from nickel plated brass. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Suggested magnet: PTM 18 Normally open contacts Maximum switching voltage: 1500VAC Maximum switching current: 3A Maximum switching capacity: 120W/VA Switching distance: 15mm Min 2 x round 0.50mm² PVC covered black and insulated brown / blue
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 5A |
| Contact Configuration | SPST-NO |
| Material | Nickel Plated Brass |
| Maximum Switching Capacity | 120W/VA |
| Maximum Switching Current | 3A |
| Maximum Switching Voltage | 1500VAC |
| Operating Temperature | -20°C to +85°C |
