SPST-NO Reed Switch 0.1A 30VDC

SKU 482570

MPN: 482570

Availability:
368 in stock
Original price £0.66 - Original price £0.66
Original price
£0.66 Inc VAT
£0.66 - £0.66
Current price £0.66 Inc VAT

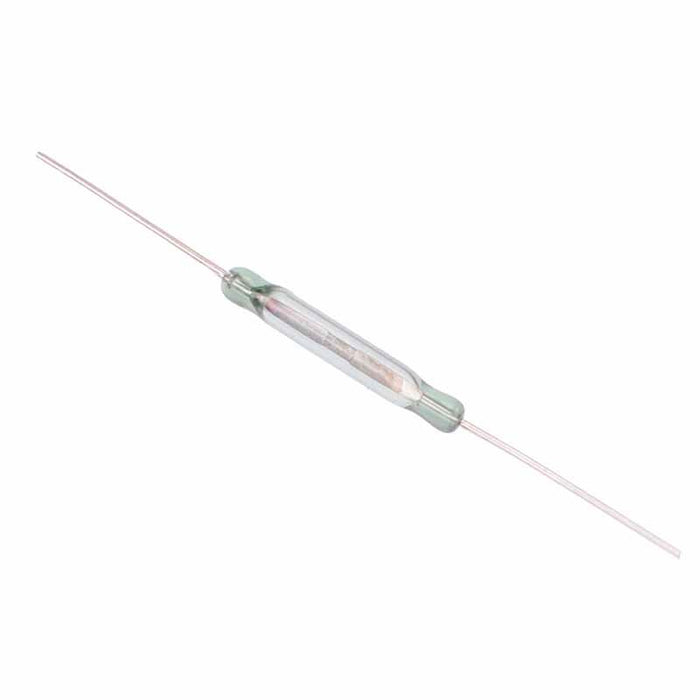

Reed switch featuring 0.1A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

  • Contacts: SPNO
  • Dimensions: 3 x 20mm (diameter x length)
  • Maximum switching voltage: 30VDC
  • Maximum switching current: 0.1A
  • Pull-In value: 40-70AT
  • Specification
    Back order lead time 120 Days
    Bounce time 1ms
    Carry current 0.3A
    Contact configuration SPST-NO
    Diameter 3mm
    Drop out sensitivity 15AT Min
    Length 20mm
    Material Rhodium
    Maximum switching current 0.1A
    Maximum switching voltage 30VDC
    Operating temperature -10°C to +60°C
    Pull in sensitivity 40-70AT
    Release time 1ms
