SPST-NO Reed Switch 0.5A 230V - 2206-2725-020

by Comus
SKU 552472

MPN: 2206-2725-020

Availability:
Out of stock
Sold out
Original price £0.81 - Original price £0.81
Original price
£0.81 Inc VAT
£0.81 - £0.81
Current price £0.81 Inc VAT

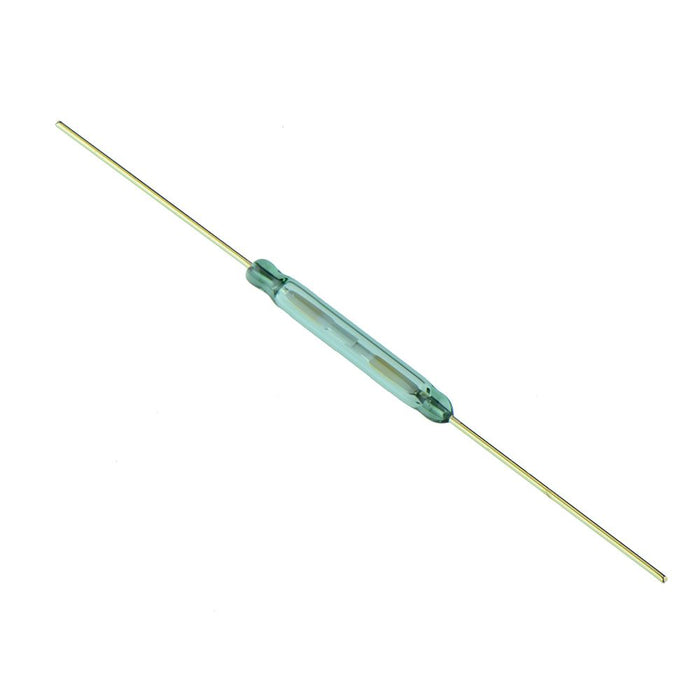

2206-2725-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 0.5A
  • Maximum switching power: 10VA
  • Pull-in sensitivity: 20-50AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 0.8A
    Contact configuration SPST-NO
    Diameter 2.6mm
    Drop out sensitivity 10AT Min
    Length 18.5mm
    Material Rhodium
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 230VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 20-50AT
    Release time 0.1ms
