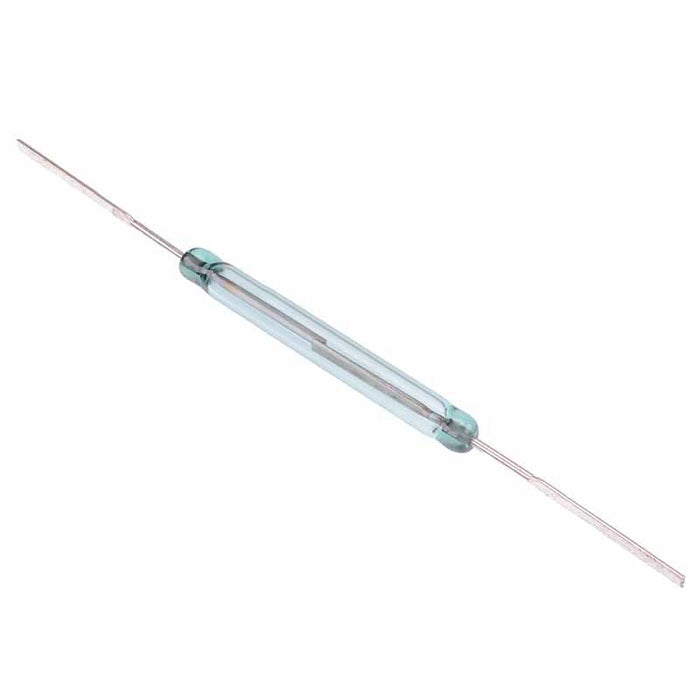

SPST-NO Reed Switch 0.5A 60VDC
SKU 482571
MPN: 482571
Availability:
97 in stock
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
£0.70
£0.70
-
£0.70
Current price
£0.70
Reed switch featuring 0.5A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.
Contacts: SPNO Dimensions: 4 x 38mm (diameter x length) Maximum switching voltage: 60VDC Maximum switching current: 0.5A Pull-In value: 50-80AT
Specification
| Back Order Lead Time | 120 Days |
| Bounce Time | 0.8ms |
| Carry Current | 2A |
| Contact Configuration | SPST-NO |
| Diameter | 4mm |
| Drop Out Sensitivity | 15AT Min |
| Length | 38mm |
| Material | Rhodium |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 60VDC |
| Operating Temperature | -10°C to +70°C |
| Pull In Sensitivity | 50-80AT |
| Release Time | 0.4ms |
