SPST-NO Reed Switch 100mA 24V - 8601-0211-015

by Comus
SKU 552477

MPN: 8601-0211-015

Back Order Availability: 180

Availability:
45 in stock, ready to be shipped
Original price £1.34 - Original price £1.34
Original price
£1.34 Inc VAT
£1.34 - £1.34
Current price £1.34 Inc VAT

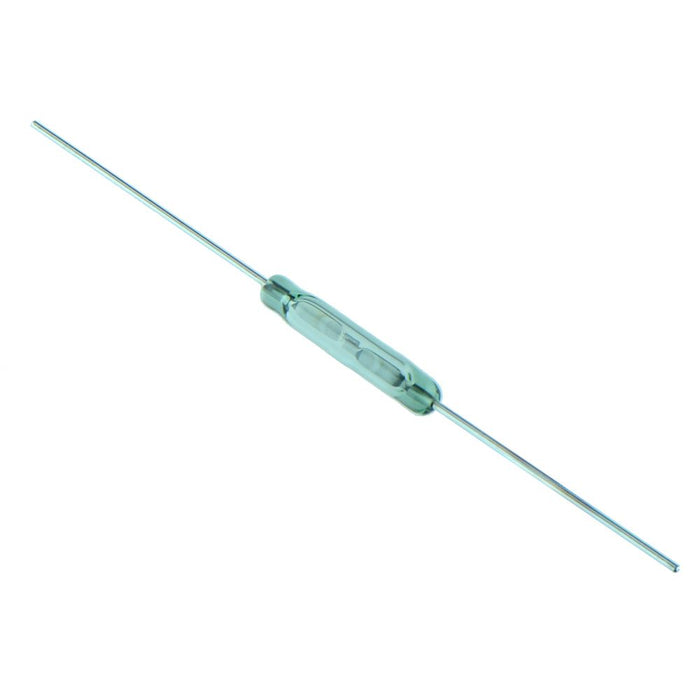

8601-0211-015 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 24V AC/DC
  • Maximum switching current: 0.1A
  • Maximum switching power: 1VA
  • Pull-in sensitivity: 10-40AT
  • Specification
    Back order lead time 180
    Bounce time 0.3ms
    Carry current 0.3A
    Contact configuration SPST-NO
    Diameter 2mm
    Drop out sensitivity 5AT Min
    Length 10mm
    Material Rhodium
    Maximum switching capacity 1VA
    Maximum switching current 0.1A
    Maximum switching voltage 24VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 10-40AT
    Release time 0.05ms
